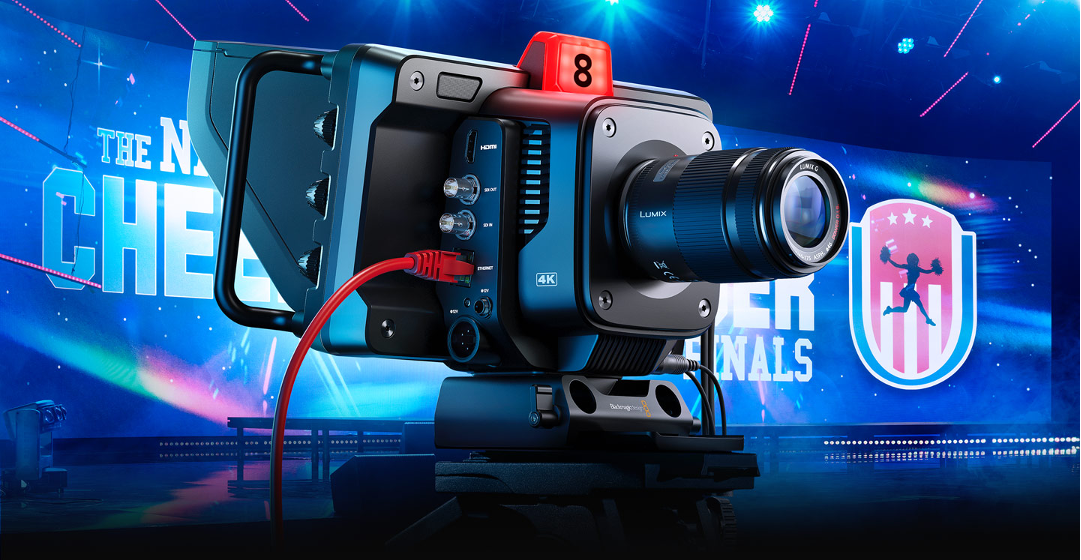

Meet the world's most advanced standalone studio camera! Blackmagic Studio Cameras have the same features as large studio cameras in a compact and portable design. With the dynamic range and color science of a digital film camera, these cameras handle very difficult lighting conditions and deliver cinematic images. Its sensor has an ISO of up to 25,600, so you can get great images even in dimly lit places. It even works in moonlight!

Advanced features include talkback, tally, camera control, built-in color corrector, Blackmagic RAW recording to USB disks and more!

You can even add Focus and Zoom Demand products for lens control!

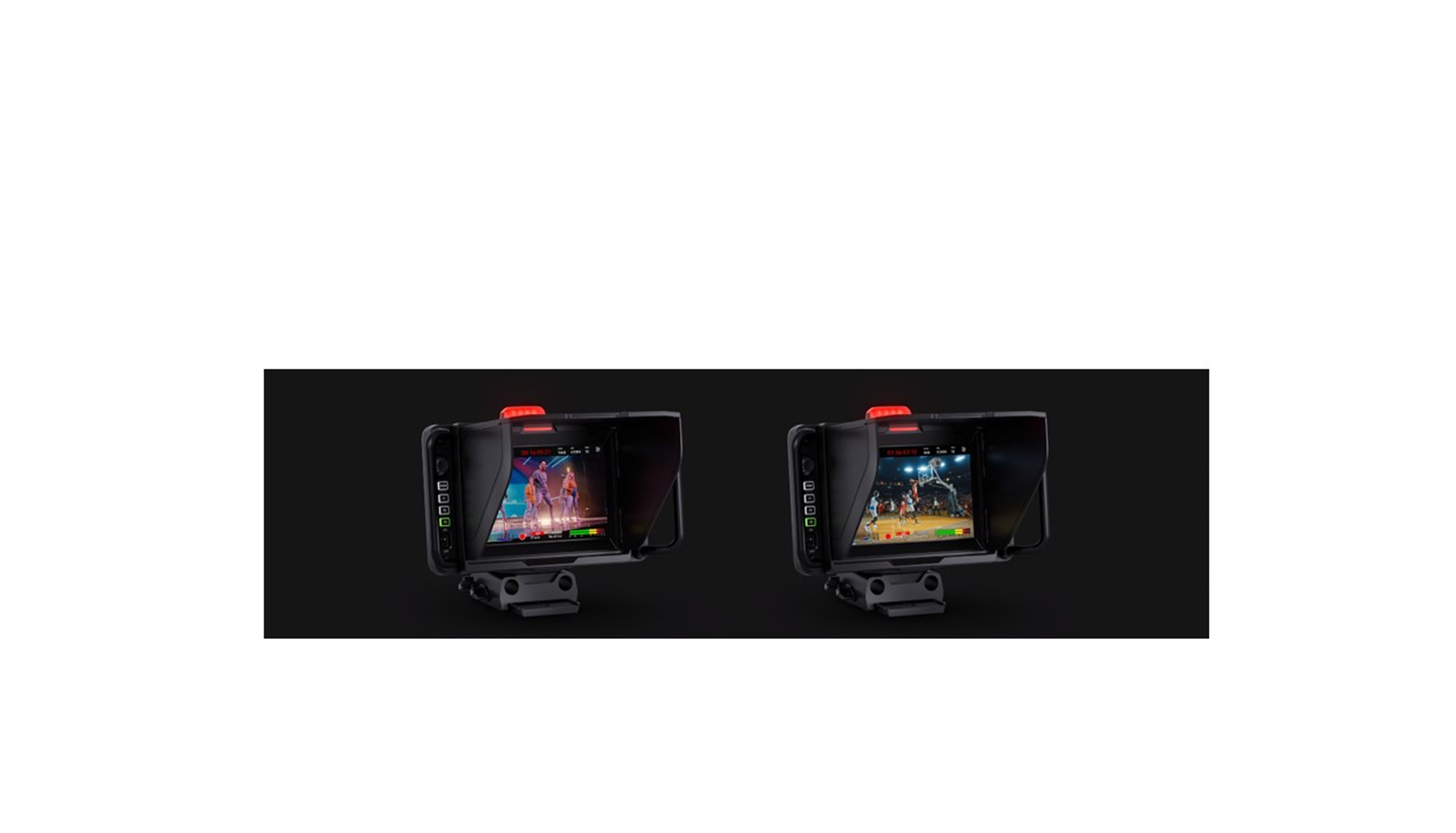

Blackmagic Studio Camera 4KPlus

Designed as the ideal studio camera for ATEM Mini, this model; Includes 4K sensor up to 25,600 ISO, MFT lens mount, HDMI output, 7” LCD screen and sunshade, built-in color correction and recording to USB disks.

Blackmagic Studio Camera 4KPro

Designed for professional SDI or HDMI switchers, it has all the features of the Plus model, but offers 12G-SDI, professional XLR audio, brighter HDR LCD, 5pin talkback and 10G Ethernet IP.

Designed for Live Production

Although it's designed for live production, you're not limited to using the Blackmagic Studio Camera with a live switcher! Because it records Blackmagic RAW to USB disks, so it can be used in any situation where a tripod is used! With its large 7-inch viewfinder; Ideal for talk shows, television production, news broadcasts, sports, education, conference presentations and even weddings! Its large bright screen with side grips, touchscreen and physical controls make it easy to track shots and are comfortable for extended use. Since it is very light, it is perfect when changing places and doing different jobs.

Revolutionary Studio Camera Design

Large broadcasters use studio cameras that are too large and expensive to carry. The distinctive Blackmagic Studio Camera includes both a camera and viewfinder in a compact design, providing all the features of a large studio camera. It has a lightweight, carbon fiber reinforced polycarbonate body incorporating innovative technology in a compact design. Because the camera is designed for live production, it's easy to track and frame shots with the 7-inch viewfinder. Its touchscreen has menus for camera settings and buttons for brightness, contrast and focus painting. Including a tripod mount with mounting plate for quick setup!

Outstanding Low Light Performance

In advanced cameras, the ISO value is a measure of the image sensor's sensitivity to light. The higher the ISO, the greater the gain, so it's possible to shoot in natural light or even at night! Blackmagic Studio Camera supports gain value from -12dB (100 ISO) to +36dB (25,600 ISO), optimized to reduce grain and noise in images, and preserves the full dynamic range of the sensor. The primary native ISO is 400, making it ideal for use in studio light. The secondary high value is 3200 ISO, perfect for shooting in dimly lit environments. Earning; can be set remotely from the camera or from a switcher using SDI or Ethernet camera control.

Get Cinematic Images in Live Production!

The combination of Blackmagic 5th generation color science and a stunning 4K sensor delivers the same imaging technology as digital film cameras. Now you can use cinematic footage for live production! Combined with the built-in DaVinci Resolve primary color corrector, you'll get better images than with simple broadcast cameras. The color corrector can even be controlled from the switcher. With its 13-stop dynamic range, the camera achieves darker blacks and brighter whites and is perfect for color correction. Its sensor has a resolution of 3840 x2160, which is great for both HD and UltraHD work. In addition, all models support frame rates of 23.98 fps to 60 fps.

Affordable Photo Lenses!

With the popular MFT lens mount, Blackmagic Studio Cameras are compatible with a wide variety of photographic lenses. The quality of photographic lenses is very high because they are designed for high resolution photography. In addition, the active lens mount allows you to adjust the lens remotely. Optional Focus and Zoom Demand products let you adjust the lens from tripod arms, just like on large studio cameras, so you don't have to reach for the lens's zoom and focus adjustment! This way, you avoid camera shake when adjusting the lens, and you can use the camera and follow the shots without taking your hands off the tripod! Gives the same feel as an expensive B4 broadcast lens!

Frame Shots with a Large 7” Viewfinder

Its large 7” high resolution screen will change the way you work with the camera because it makes framing images easy. The promodel has a high-brightness HDR display, ideal for shooting outside in the sun! On-screen overlays; It displays status information, recording parameters, histogram, focus painting indicators, levels, frame guides, and similar information. 3D LUTs can be applied to view footage with the desired color and appearance. There are touchscreen menus and you can load and customize presets for different jobs. The built-in shade can be folded to protect the screen when transported and is compatible with the shades used with the Blackmagic Studio Viewfinder.

Physical and Touch Screen Controls

Blackmagic Studio Cameras have controls on the touchscreen as well as physical buttons and buttons. Buttons on the right side of the camera; for adjusting brightness, contrast and focus painting. The focus paint button is very useful because it lets you fine-tune the brightness of the details for perfect focus while zooming. The three function buttons on the left; Functions like zebra, false color, focus painting and LUTs can be assigned! You can also change the functions assigned to each button in the menus. The touchscreen features a control center screen with the most important shooting information and menus for all camera settings, LUTs and custom presets.

Internal Tally That Shows You're Live

On Blackmagic Studio Cameras; It has a very large tally lamp that lights red when on-air, green in preview, and orange when recording the separate signal. The tally lamp comes with clip-on, transparent camera numbers so the artist can easily see the camera number from 6 meters away. Blackmagic Studio Cameras support the SDI tally standard used in all ATEM live production switchers and HDMI tally on ATEM Mini switchers. This way, the director can switch between cameras and tally information is transmitted back to the camera via the SDI program return signal, turning on the tally lamp on the camera when it's on the air. SDItally speeds up installation by eliminating complicated wiring.

Communication with the Director on Talkback

Powerful Broadcast Links

Blackmagic Studio cameras have multiple connections for connecting to both consumer and broadcast equipment. In all models; tally, camera control and recording triggering, and HDMI connectivity, perfect for ATEM Mini switchers. There's also headphone and microphone connections and 2USB-C expansion ports. The advanced Blackmagic Studio Camera4K Pro is designed for broadcast workflow, featuring 12G-SDI, 10GBASE-T Ethernet, talkback and balanced XLR audio inputs. With 10GEthernet, all video, tally, talkback and camera power can be provided over a single connection, installation is faster! This is like an SMPTE fiber workflow using standard Class 6A copper Ethernet cable and is less priced.

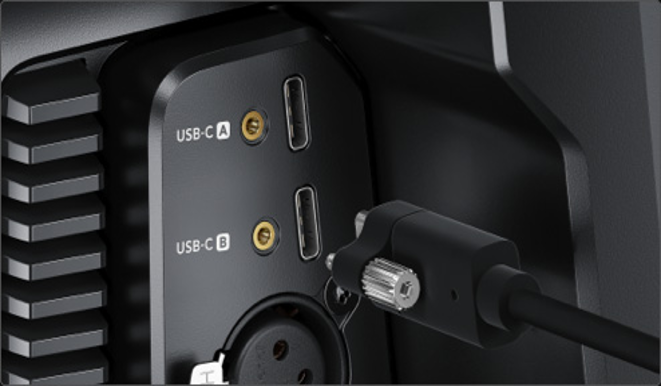

USB-C Expansion USB‑Cports for recording to discs or Focus/Zoom Demand products. XLR Audio Input Low noise audio inputs with phantom power. talkback Connect broadcast style 5pin talkback headphones. Headphone Headphone jack supports consumer-grade headphones. ExternalMicrophone Connect video camera style microphones.

Four Connection Options

Blackmagic Studio Cameras have many different connections! Great for HDMI switchers like the ATEM Mini because all models have HDMI. HDMI connection supports video, tally, control and recording triggering for broadcast-style workflow with a single HDMI cable. The Blackmagic Studio Camera4K Pro has 12G-SDI and can be connected to SDI-based switchers such as ATEM Constellation. There is a 12G-SDI connection for both camera video and program return signal. Program turn signal; It also carries tally, talkback and camera control. Or with 10G Ethernet you can even supply camera video, program return, tally, talkback, camera control and power via standard Cat6A Ethernet cable!

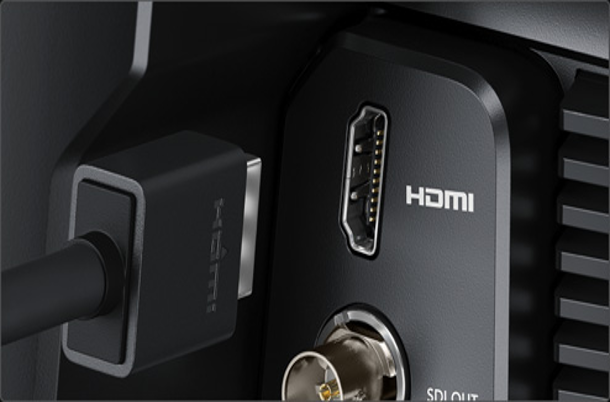

	Connect via HDMI Using the HDMI output you can connect to switchers like the ATEM Mini! HDMI connection; tally supports forwarding color corrector control and recording trigger signals back from the switcher to the camera.

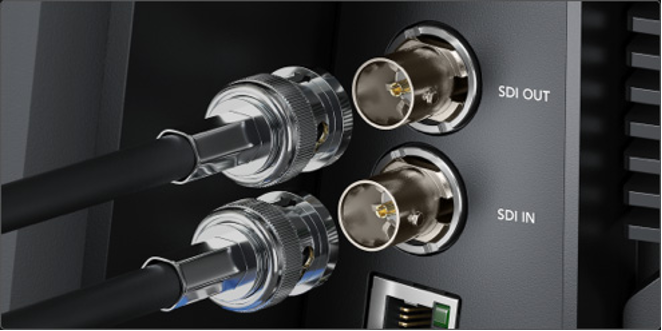

	Connect via SDI The SDI model uses the SDI output and SDI program return signal for 2-way communication between the camera and any SDI ATEM Switcher. Tally and control are also sent to the camera via the SDI program return signal.

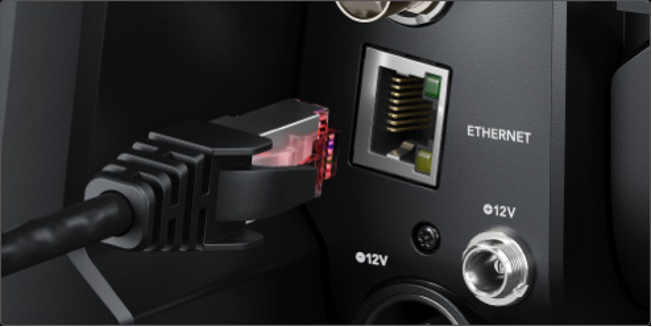

	Connect over Ethernet A 10G Ethernet connection allows all signals and camera power to be transmitted using just one Cat 6A copper Ethernet cable! This; Includes camera video signal, program turn signal, tally, talkback, camera control and more!
	Connect via USB Disk You can shoot without a switcher and record Blackmagic RAW to a USB flash drive at the same time, as the large screen makes this camera perfect for shooting Blackmagic RAW.

Get Low Cost Camera Control over SDI

All Blackmagic Design ATEM switchers can control cameras via a protocol embedded in the camera's SDI video connections. All ATEM switchers are easy to set up as they send control commands from the switcher's SDI program output to the camera's SDI program input. Color correction, tally and lens control can be applied by the switcher and transmitted to all cameras. Just choose the correct camera number and everything works. Even ATEM Mini can control Blackmagic Studio Cameras because the HDMI signal to the Switcher has a data return communication that can send control information back to the camera. So the cameraman can focus on framing the shots.
