Focusrite Pro
Focusrite Audio Engineering has pioneered professional audio recording technology for nearly three decades. Focusrite Pro, on the other hand, meets the needs of recording, post-production, live sound and broadcast professionals. Offering flexible Audio-over-IP solutions, RedNET offers a wide range of Focusrite's leading multi-functional Red interfaces, mic-preamps and analog signal processors following the ISA legacy. The solutions offered by Focusrite Pro have been developed to meet the needs of the most demanding applications with quality, reliability and ease of use.

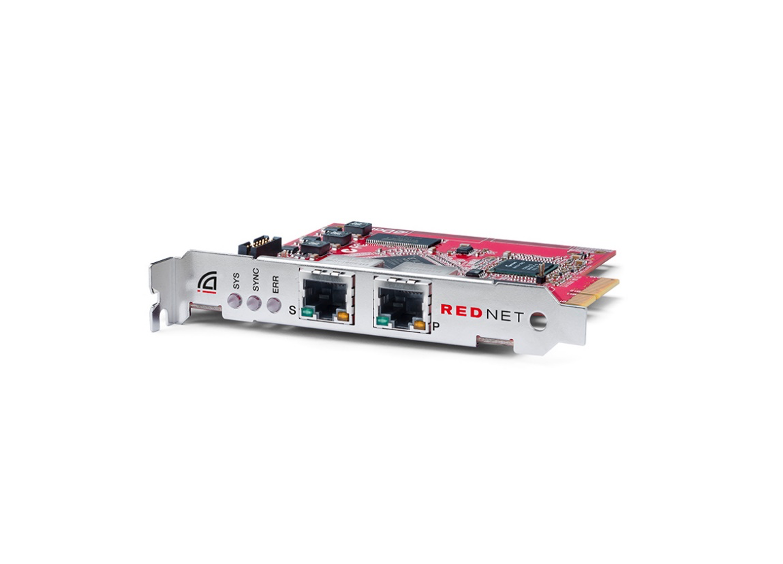

Focusrite Pro RedNet PCIeR
128X128 PC and Mac I/O
Focusrite Pro RedNet PCIeR is a dedicated 128x128 Dante audio interface for Mac and Windows PCs. Featuring a primary and secondary Ethernet port, Focusrite Pro RedNet PCIeR offers high channel counts with very low latency with the highest reliability. 4x PCIe cards, ASIO or Core Works with audio apps. Focusrite Pro RedNet PCIeR combines extremely low latency with network redundancy, delivering the best possible system performance with exceptional reliability. The card requires a standard 4x PCIe slot on a Windows or Mac computer and provides up to 128 channels of I/O with very low latency. RJ45 Gigabit Ethernet connectors automatically switch based on network availability and connect the audio computer to the rest of the voice over Dante IP network.
Focusrite Pro RedNet D16R
16x16 AES3 I/O with dual PSU
Focusrite Pro RedNet D16R is a 1U (rack) type, 16x16 AES3 I/O unit for Dante AoIP (Audio-over-IP) networks. Offering AES3 I/O with built-in redundant network output and power supply, the RedNet D16R is an ideal choice for many critical applications in Post Production, Live Sound, Broadcast and recording studios.
Focusrite Pro RedNet D16R, which allows plug-and-play to any AES3 source with its SRC (Sample Rate Converter) per pair of inputs, can be used to bridge any Dante network with digital console, power amp's or any AES3 audio equipment. is ideal.
Four rear-panel DB25 connections connected to the AES59 standard provide eight pairs of AES3 I/O, while an additional pair of XLR connections for a pair of I/O provide flexibility as a cabling option. Additional RCA connections allow connection to consumer S/PDIF equipment. All external audio inputs have SRC to reduce wiring and clock clutter. Through BNC connectors, WordClock I/O gives flexibility to work with external clock devices. Power is provided by a pair of lockable IEC power inputs, while a pair of Neutrik etherCON network connections allow for redundant or daisy-chain system installation.

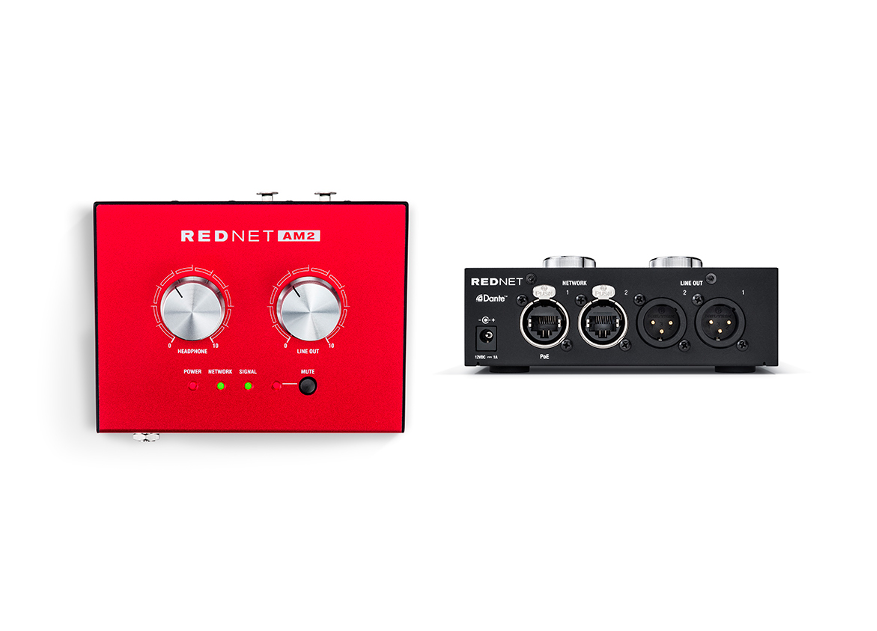

Focusrite Pro RedNet AM2
Focusrite Pro RedNet AM2 is a compact, portable Dante interface that can provide stereo headphone or line output. Featuring a powerful headphone amplifier capable of driving both high and low impedance headphones, Focusrite Pro RedNet AM2 is the ideal signal monitoring device to add extra functionality to your audio network.
A pair of rear panel XLR outputs provide line level output of up to 24dBu with top panel level control and mute switch, while the front panel 1/4" headphone output can also support high signal levels for monitoring even in high SPL environments. Robust aluminum and steel chassis. The bottom has a microphone stand slot that allows the Focusrite Pro RedNet AM2 to be placed in any convenient environment, whether it's on a desktop or an artist's fingertip microphone stand Finally, the IEEE 802.3af standard PoE input is connected to a single Ethernet cable. It allows the transmission of power, clocking, remote control and audio data.
Focusrite Pro RedNet X2P
2x2 Dante Audio interface and Red Evolution Mic-Preamps
Focusrite Pro RedNet X2P is a compact, portable 2-channel Dante interface with 2 Red Evolution Preamps and can provide stereo headphone or line output. Focusrite Pro RedNet X2P lets you easily integrate high quality audio equipment into your Dante network with power, audio, clock and remote access over a single Ethernet cable. While providing your own monitor control with the built-in input mixer on it, the "control lockout" mode prevents remote control, giving personal ease of use.
The rear panel XLR outputs offer level-controlled analog outputs of up to 24dBu, while the 1/4" output on the front panel provides a high-power headphone output that can be used for both low and high impedance headphones. A pair of XLR\1/4" inputs is for microphone, Allows line and instrument-level signals to be connected to Focusrite's own Air Mode-enabled mic-preamps that can simulate the character of its classic input transformer, while the top panel user interface provides high-end audio with headphone, line output levels and mic-pre gain level control. It provides access to pass filter, Air, phase invert, phantom power stereo link features.
