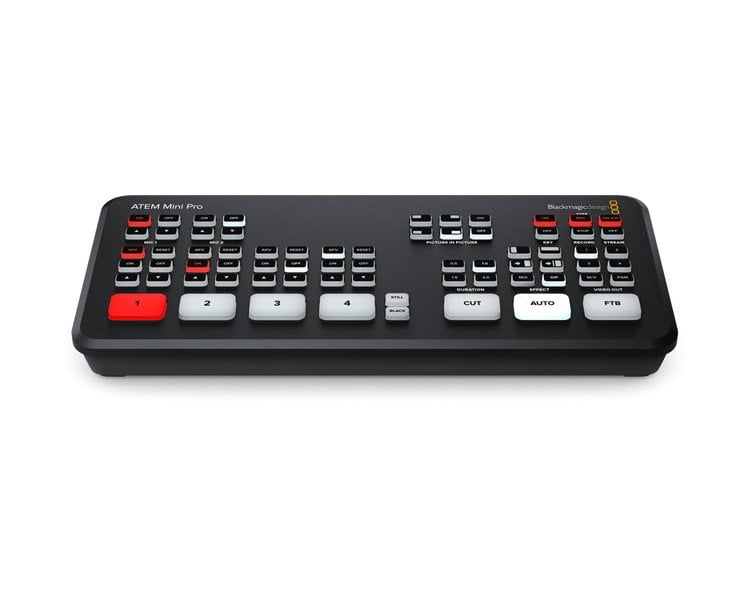

ATEM Mini Pro

-ATEM Mini Pro is quick to set up and easy to use.

Includes 4 standard-converted HDMI inputs, USB webcam output, HDMI output, Fairlight audio mixer with EQ and dynamics, DVE for picture-in-picture, transition effects, green screen chroma key, 20-image media pool for texts, and free ATEM Software Control software .

-ATEM Mini Pro also includes the ability to record directly to USB flash drives in H.264 format, as well as direct stream over Ethernet to YouTube Live and more.

-There is also output for a multi-view display, with 4 cameras, media, preview and program, recording status, streaming and audio.

Links

Total Video Input: 4

Total Output: 2

Total Aux Output: 1

Total Audio Input: 2 x 3.5mm stereo mini jack

Total Audio Output: None, embedded audio only.

Timecode Connection: No

HDMI Video Inputs: 4 x HDMI type A, can range from 10-bit HD. 2 channel embedded audio.

Video Input: Resync All 4 HDMI inputs have it.

Frame Rate and Format Converters: Available on all 4 HDMI inputs.

HDMI Program Outputs: 1

Ethernet: Ethernet; Supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection.

Computer Interface: 1 x 1st Gen USB-C 3.1 for external disk recording, webcam output, software control, software updates and panel connection.
