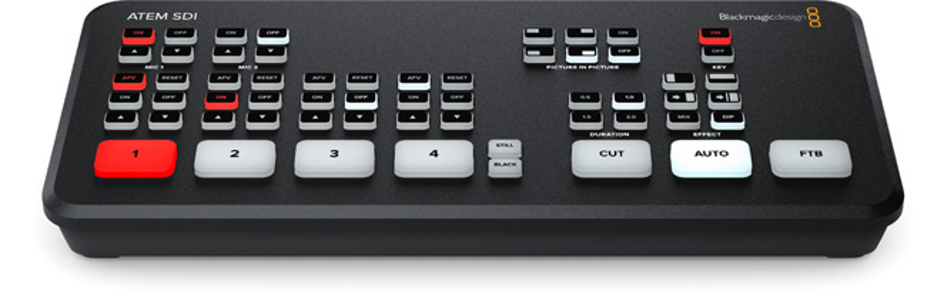

ATEM SDI

ATEM SDI is quick to set up and easy to use. Four format conversion SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamic effects, DVE for picture-in-picture, transition effects, green screen chroma key, 20-image media pool for captions and free ATEM Software Control software includes.

Links

Total Video Input

4

Total Output

3

Total Aux Output

2

Total Audio Input

2 x 3.5mm stereo mini-jacks.

Total Audio Output

No, just embedded audio.

Timecode Link

no

SDI Video Input

Switchable between 4 x SDI, 10-bit HD.

2 channel embedded audio.

Video Input Resync

It has all 4 SDI inputs.

Frame Rate and Format Converters

It has all 4 SDI inputs.

SDI Program Output

2

Ethernet

Ethernet; Supports 10/100/1000 BaseT for live streaming, software control, software updates or network panel connection.

Computer Interface

1 x USB-C 2.0; for webcam output, software control, software updates and panel connection.
