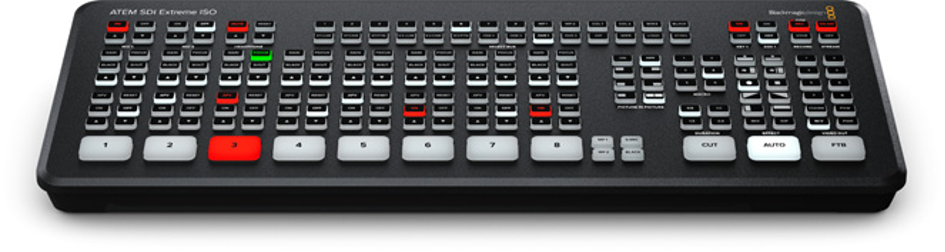

ATEM SDI Extreme ISO

This model has all the features of ATEM SDI Pro ISO, but with 8 SDI inputs and 4 SDI outputs. It also enables recording of all 8 clear signal inputs and program video signal as it can record 9 individual H.264 video signals in real time. A DaVinci Resolve project file is also saved.

Links

Total Video Input

8

Total Output

6

Total Aux Output

4

Total Audio Input

2 x 3.5mm stereo mini-jacks.

Total Audio Output

1 x 3.5mm stereo mini-jack.

Timecode Link

no

SDI Video Input

8 x 3G-SDI can be switched to 10-bit HD.

2 channel embedded audio.

Video Input Resync

It has all 8 SDI inputs.

Frame Rate and Format Converters

It has all 8 SDI inputs.

SDI Program Output

4

Ethernet

Ethernet; Supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or networked panel connection.

Computer Interface

2 x 1st Gen USB-C 3.1 for external disk recording, webcam output, software control, software updates and panel connection.
