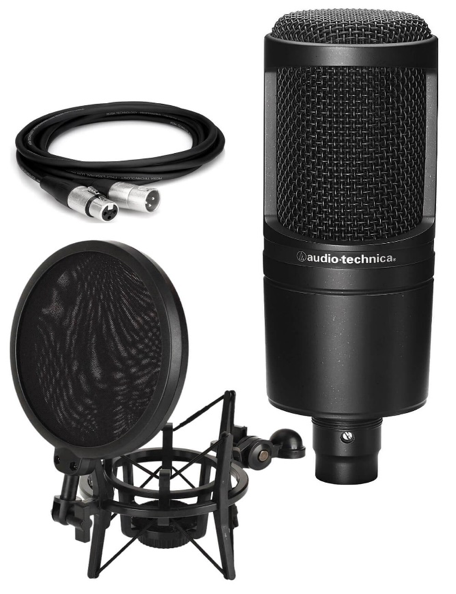

Audio Technica AT2020

Wide Diaphragm Condenser Microphone

Audio-Technica's Japanese Engineering, quality and consistency standards set the AT2020 apart from other microphones in the same segment. The low mass diaphragm is specially designed for extended frequency response and superior transient response. Ruggedly built for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The Audio-Technica AT2020 Condenser Studio Microphone starts a new era for studios with an affordable price.

Audio-Technica AT2020 has achieved a standard in studio condenser microphone technology in terms of price / performance. It is an ideal microphone for project and home studio applications. High SPL handling and wide dynamic range give you unmatched versatility in microphone use. Its specially designed low-mass diaphragm and extended frequency response provide superior transient response. The cardioid polar pattern reduces pickup from the sides and rear and improves the isolation of the desired sound source. Its swivel stand provides secure attachment for easy and precise microphone placement.

Technicial Specifications

Microphone Type: Studio Microphone

Element: Fixed-charge backplate, permanently polarized condenser

Polar Patterns: Cardioid

Frequency Response: 20-20 000Hz

Maximum Audio Input Level: 144 dB SPL, 1 kHz at 1% THD

Noise: 20 dB SPL

Dynamic Range: 124 dB, 1 kHz at Max SPL

Signal to Noise Ratio: 74 dB, 1 kHz at 1 Pa

Sensitivity:–37 dB (14.1 mV) 1V at 1 Pa

Impedance: 100 ohms

Length: 162mm

Diameter:52mm

Weight: 345g

Output Type: Integrated 3-Pin Male XLR

Accessories: Stand Mount, Soft Protective Bag
