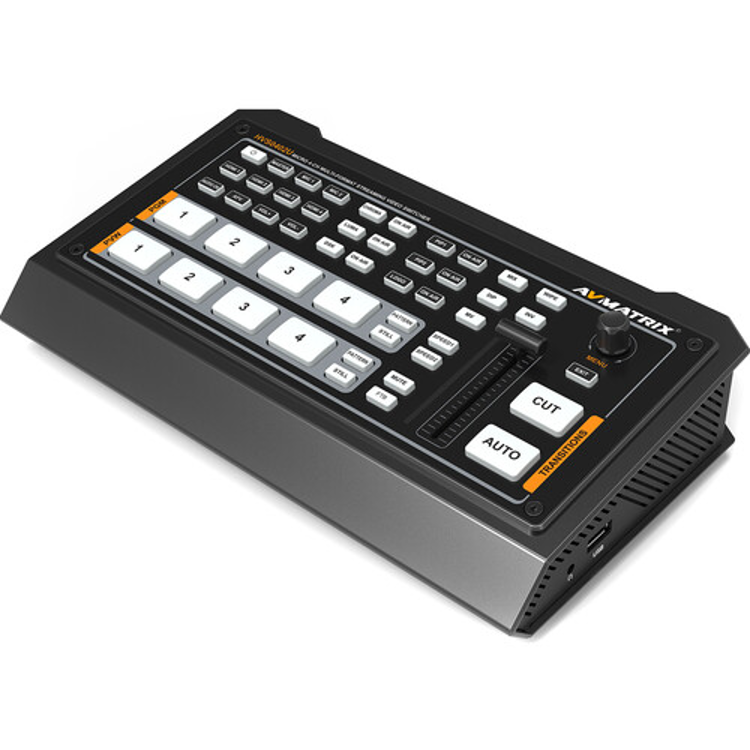

AVMatrix HVS0402U 4-Channel Live Streaming Video Switcher

Switch up to four different HDMI video inputs while watching the program stream with AVMATRIX's HVS0402U 4-Channel Live Stream Video Switcher. Concert productions, events, houses of worship, virtual studios, educational institutions and live sports programs are some of the use cases for which the HVS0402U can be used. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment.

It can output four HDMI inputs via one HDMI multi-view and one HDMI program output using its scaling features, allowing you to view them all on the same screen with configurable PiP functionality. You can also transfer program video to a computer via the USB Type-C port for video capture and streaming applications. The HVS0402U has four HDMI inputs that can be connected to cameras or other consumer or professional sources to switch to 1080p60 video with embedded audio. You can also mix audio using two analog stereo 3.5mm mic/line inputs and outputs, along with embedded audio. You can also remotely control the switcher over IP using the software using the LAN port.

Its interface features blend, fade, and erase effects, along with source and destination buttons and a T-bar for transitions and cuts. It also includes upstream luma keying, color keying, picture-in-picture (PiP) and picture-on-picture (PoP), as well as downstream keying and logo overlay. You can capture up to 16 screenshots and store up to 16 images using the USB Type-A input. USB port supports disks up to 256GB capacity. It also includes two color generators and a pattern generator.

The HVS0402U has a tally interface that supports GPIO, mute, fixed frame and dimming (FTB) functions. A power supply, USB cable, and tally connector are included, and a 1/4"-20 thread on the bottom allows mounting to a separately available stand or console.

Four auto-detected HDMI inputs

One HDMI Program (PGM) output and one HDMI multi-view output

One USB Type-C for capturing and streaming on a computer with software

AUX output, configurable and assignable

Upstream key: Luma key, color key, two picture-in-picture (PiP) and one picture-on-picture (PoP)

Downstream switch and logo overlay

T-bar/auto/cut transitions; erase (9x2 pattern)/mix/dip effects

Audio mixer: HDMI embedded audio and 2-channel microphone/line input; audio delay available

3.5mm headphone output

Media library: 49 default patterns, 16 imported images, 16 captured images and 2 color generators

LAN port for PC software remote control

Tally support for dimming (FTB), mute, still and GPIO

Customer configuration import and export via USB Type-A as well as image and logo input from drives up to 256GB
