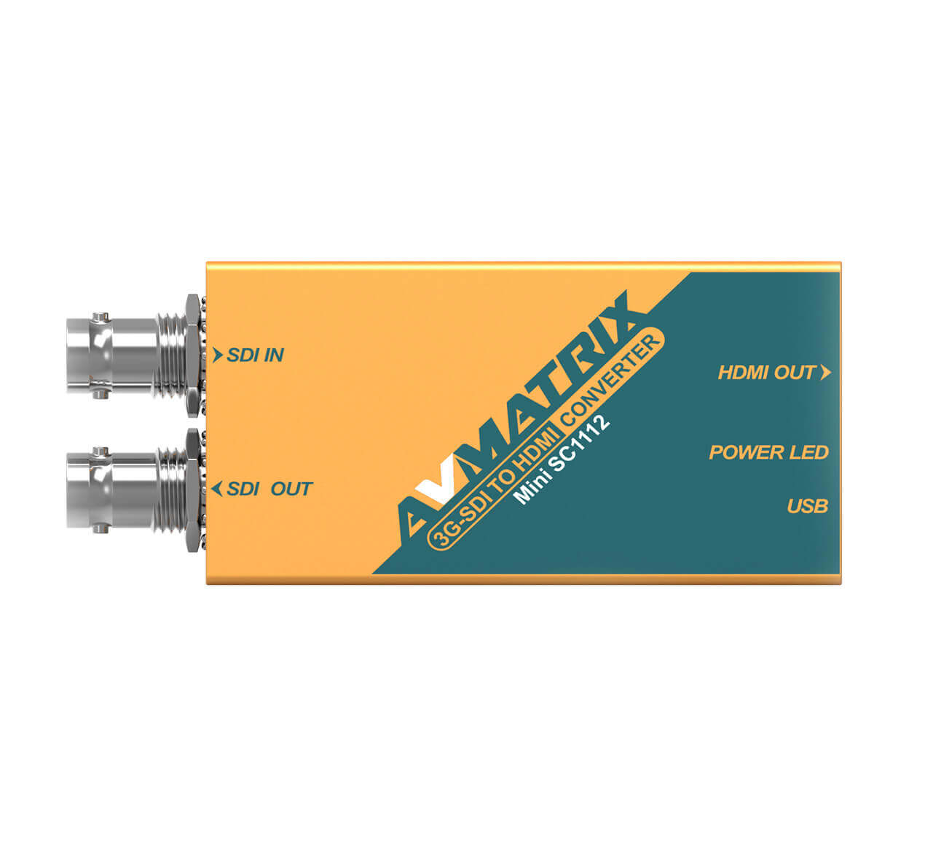

AVMATRIX Mini SC1112 3G-SDI to HDMI Pocket-Size Broadcast Converter

The AVMatrix Mini SC1112 from Lilliput Electronics is an ultra-compact SDI to HDMI signal converter in a rugged metal enclosure.

The mini SC1112 has a 3G-SDI input and full size HDMI output and an SDI loop output for monitoring. It supports resolution up to 1080p60 and automatically selects between 3G, HD and SD on input. The EMC-compliant Mini SC1112 can be used reliably 24/7 without interruption, lag or delay. A mounting bracket is also included, which is easily attached/removed and allows for convenient mounting indoors or outdoors.

The mini SC1112 has a USB port for power and an LED indicator that confirms the power status. An AC adapter is supplied that connects to the micro USB port for continuous power, but you can also connect it to other sources via a USB cable (included). For example, you can connect it to a laptop or a power bank. A 10,000 mAh power bank will run the converter for about 24 hours.

The transducer can also operate in a wide temperature range from -4 to 140°F.

Main Features

3G/HD/SD-SDI input (auto select)

HDMI Type-A output

3G/HD/SD-SDI loop out

Supports up to 1080p60 resolution

EMC compliant and works 24/7 with no lag/lag

Micro USB port for power

LED power indicator

AC power adapter included

Mounting bracket included
