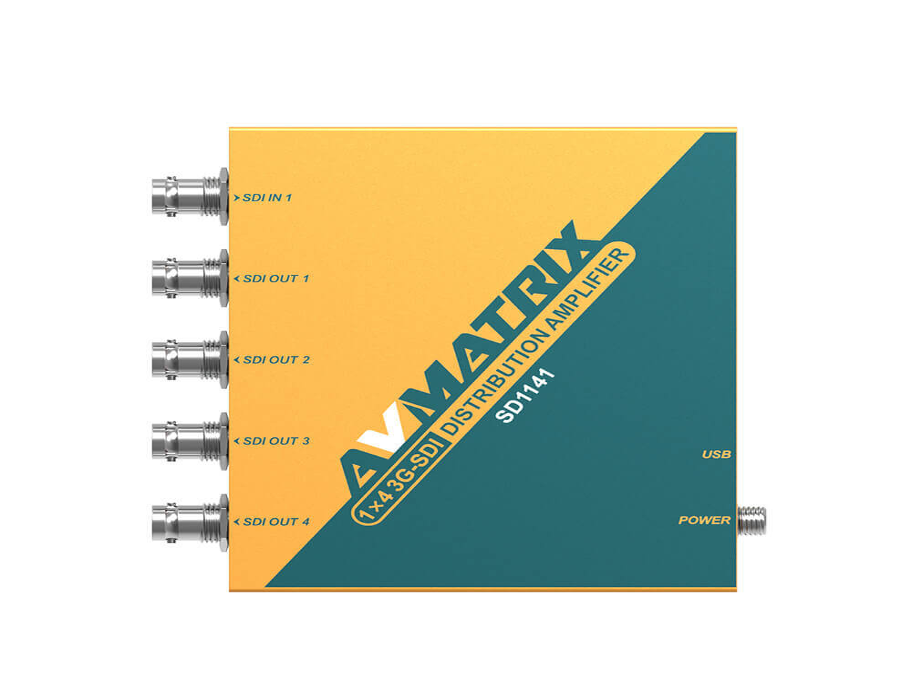

AVMatrix SD1141 1:4 3G SDI Distribution Amplifier

1×4 SDI Reclock Distribution Amplifier The SD1141 is a miniature, low cost 1x4 3G HD-SDI/HD-SDI/SDI reclocked distribution amplifier. Equipped with four separate buffered SDI outputs, the SD1141 provides automatic input detection, reclocking and cable equalization.

1×4 Distribution The SD1141 is a compact, single-input, four-output distribution amplifier for SDI and very fast SDI video signals up to 1080P 60hz (2.97 Gbps). Output 2 and output 4 support DVB-ASI signal.

120m SDI Reclocking The SD1141 includes built-in SDI reclocking and synchronization. They will regenerate the SDI video input, reduce SDI jitter, and improve the SDI eye pattern before it reaches the processing of the signal converter. This allows longer cable lengths (3G: 120m, HD: 200m, SD: 400m).

Widely Application The SD1141 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities, rental and staging, and other applications.
