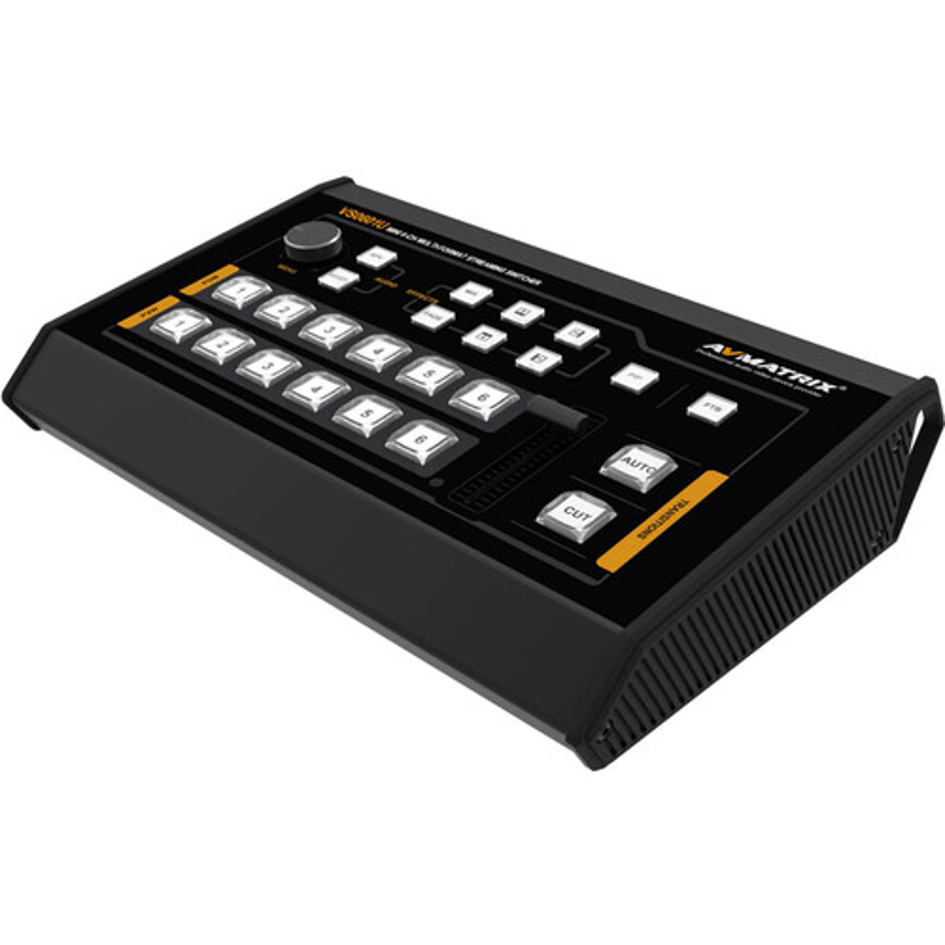

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher with USB Streaming

Switch up to six different HDMI and SDI video inputs while watching the program stream with AVMATRIX's VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher. Concert productions, events, houses of worship, virtual studios, educational institutions and live sports programs are some of the use cases where the VS0601U can be used. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment. This model also features a USB Type-C output that lets you stream uncompressed video with embedded audio to any platform like YouTube, Facebook Live, Zoom and more via a Windows, Mac or Linux computer.

You can output multiple display layouts on the same screen with the all configurable PiP function via USB Type-C, HDMI and SDI showing preview, program and input sources. The VS0601U has four 3G-SDI and two HDMI inputs that can be connected to cameras or other consumer or professional sources to switch to 1080p60 video with embedded audio. You can also mix audio using analog stereo 2RCA and 3.5mm inputs and outputs with embedded audio.

Its interface includes source and destination buttons, and a T-bar for transitions and cuts, as well as blending, fading, and erasing effects. It has a tally interface and emergency dimming (FTB) functionality.

Main Features

Six input channels with four SDI and two HDMI

Two 3G/HD/SD-SDI and one HDMI PGM (Program) output, one SDI AUX output, and each HDMI and SDI multi-view output

USB Type-C output lets you stream uncompressed video with embedded audio to any platform like YouTube, Facebook Live, Zoom and more via a Windows, Mac or Linux computer

T-bar, Auto/Cut transitions, and Blend/Dodge/Erase effects

Adjustable PiP/PoP window size and position

Audio mixer with USB Type-C, HDMI and SDI embedded audio with 3.5mm and RCA audio input and output

GPIO interface for live tally system

Fast FTB (Black To Black) for emergency
