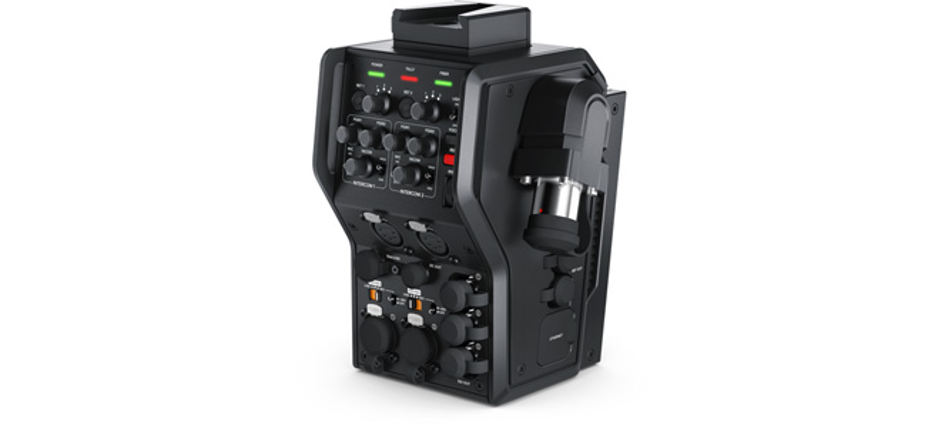

Blackmagic Camera Fiber Converter

Blackmagic Studio Fiber Converter allows you to control and operate your URSA Broadcast camera from a distance of up to 2 km using industry standard SMPTE fiber cables. It also includes standard television industry style talkback headphone connections as well as common live camera controls with multiple talkback channels. The Blackmagic Camera Fiber Converter delivers 1 Ultra HD camera signal as well as 3 HD return signals in a compact IP video-based design.

Links

Optical Fiber Input

1 pc with SMPTE 304 connector
SMPTE Hybrid Fiber Optic input (male)

SDI Video Input

1x 12G SDI for camera signal.

SDI Video Output

For camera turn signal
1x 3G SDI output, 3x 3G SDI for SDI Return Outputs.

Talkback Audio Output

Three-way audio mixer on each output
with 2 x 5-pin XLR outputs for headphones, 1 x Tracker output.

Analog Audio Input

AES, line or microphone input
2 x 3-pin XLR inputs for Has Phantom Power.

Computer Interface

1x USB-C Connector.
