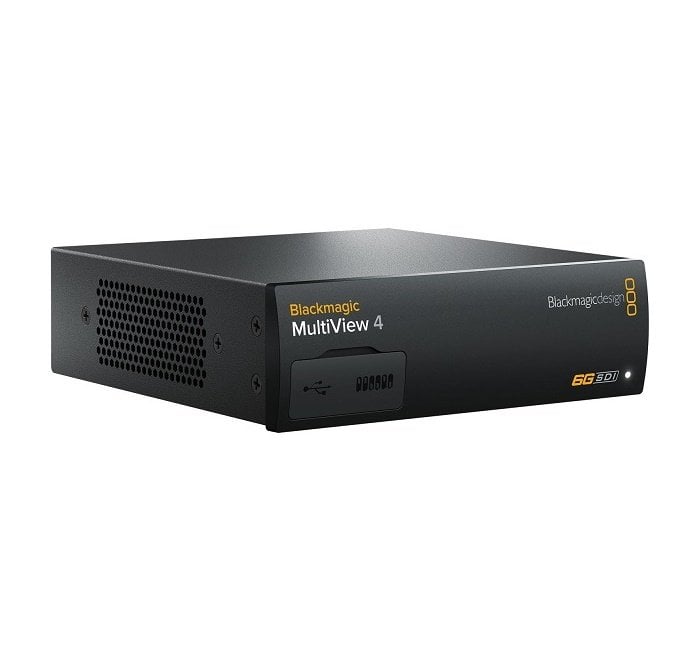

Blackmagic MultiView 4

SDI Video Inputs: 4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.

SDI Video Outputs: 4 loops, 1 HD/Ultra HD.

SDI Speeds: 270Mb, 1.5G, 3G, 6G.

SDI Video Multi-Display Outputs: 1 x 10-bit HD-SDI, 1 x 10-bit 6G‑SDI.

HDMI Video Multiple Display Outputs : 1 x HDMI A type connector. The output supports EDED of the monitor.

Re-setting of SDI Clock: On all SDI outputs; automatic switching between standard definition, high definition or 6G‑SDI video.

Reference Entry : None

Multi-Speed Support : Automatically detects SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.

Updates : Via USB 2.0 high speed (480Mb/s) interface or Ethernet.

Installation : RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.

Standards SD Video Standards : 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i .94, 1080i60

2K Video Standards : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K 23.98PsF, 2K 24PsF, 2K 25PsF.

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards: 4K DCI 24p

SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B , ITU‑R BT.656 and ITU‑R BT.601.

Audio Indicators : Every display, VU standard.

Resource Forwarding: None.

SDI Video Sampling: 4:2:2 and 4:4:4.

SDI Audio Sampling : Television standard sample rate of 48kHz and 24-bit.

SDI Color Accuracy: 10-bit 4:2:2 and 4:4:4.

SDI Color Scheme: YUV or RGB for inputs, YUV for outputs.

SDI Auto Switch : Automatically selects between SD-SDI, HD-SDI, and 6G‑SDI on each input so that each input can operate in a different television standard.

SDI Metadata Support : Video payload identification auxiliary data according to SMPTE 352M.
