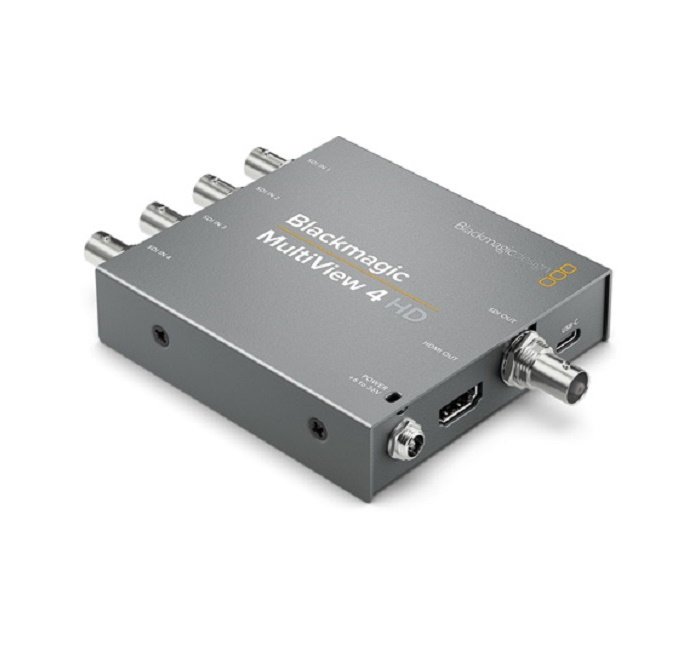

Blackmagic MultiView 4 HD

SDI Video Inputs: 4 x 10-bit SD-SDI and HD‑SDI.

SDI Video Outputs: 1 x HD-SDI.

SDI Speeds: 270Mb, 1.5G, 3G.

SDI Multiple Video Outputs: 1 x 10-bit HD-SDI.

HDMI Multiple Video Outputs : 1 x HDMI A type connector. The output supports monitor EDID.

SDI Reclocking : On all SDI outputs; automatic switching between standard definition and high definition video.

Reference Entry: None.

Multi-Speed Support: Automatic detection of SD or HD.

Updates: USB 2.0 high speed (480Mb/s) interface.

Installation : USB 2.0

Standards SD Video Standards : 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p6, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

2K Video Standards : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.

Audio Indicators : Every image is in VU standard.

Resource Forwarding: None.

SDI Video Sampling: 4:2:2 and 4:4:4.

SDI Audio Sampling : Television standard sample rate of 48kHz and 24-bit.

SDI Color Accuracy: 10-bit 4:2:2 and 4:4:4.

SDI Color Scheme: YUV or RGB for inputs, YUV for outputs.

SDI Auto Switch: Automatically selects between SD-SDI and HD-SDI on each input so that each input can operate in a different television standard.

SDI Metadata Support : Video payload identification auxiliary data according to SMPTE 352M.
