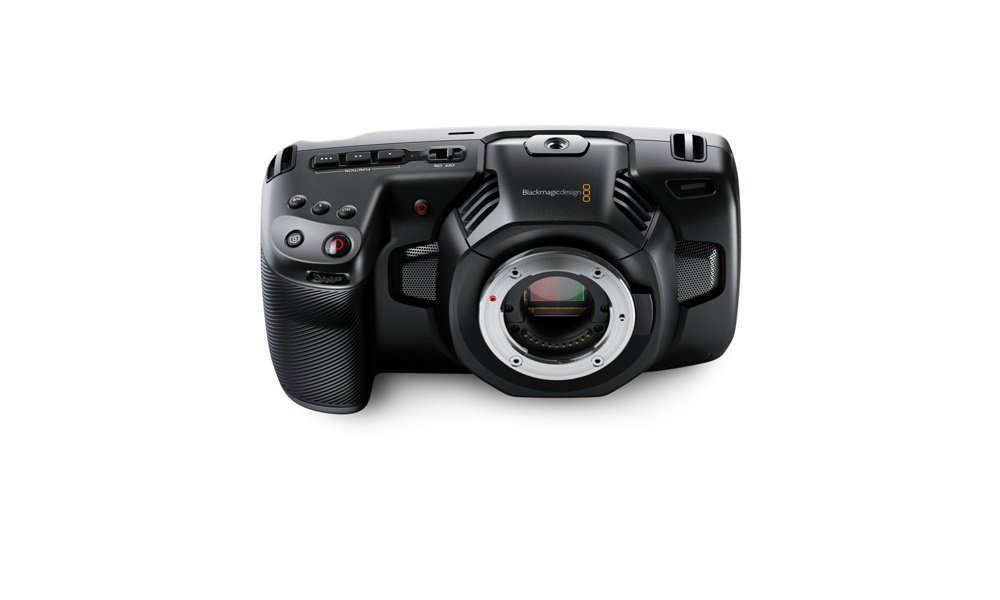

Blackmagic Pocket Cinema Camera 4K Body
Blackmagic Pocket Cinema Camera 4K Body
The new Blackmagic Pocket Cinema Camera 4K features a full 4/3 size sensor, 13 stops of dynamic range, HDR images and dual native (base) ISO up to 25,600 for superior low-light performance.
External controls provide quick access to essential functions, while the large 5-inch touchscreen makes it easy to frame images, focus accurately and change camera settings.
-For RAW or ProsRes recording, internal SD/UHS-II or CFast 2.0 recorders include a USB-C expansion port for recording to external disks.
It also features an MFT lens mount, built-in microphones, mini XLR input, full-size HDMI, 3D LUT support, Bluetooth, and more.
Camera Features
Effective Sensor Size
18.96mm x 10mm (Four Thirds)
Lens Mount
Active MFT socket.
Lens Control
Supported lenses, iris, focus and zoom.
Dynamic Range
13 Steps.
Shooting Resolutions
4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 1920 x 1080 (HD).
Frame Rates
Maximum sensor frame rate depending on the resolution and codec selected. Project frame rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps are supported.
Off-speed frame rates up to 60fps in 4K DCI, 120fps in HD windowing.
Focus
Focus buttons operate peaking, autofocus is also available using compatible lenses.
Iris Control
Iris wheel button and touch sliders for manual iris adjustment of electronically controlled lenses, iris button for automatic iris adjustments so no pixels are clipped while in movie mode. Scene average auto exposure in video mode.
Screen Dimensions
5” 1920x1080.
Display Type
LCD capacitive touch screen.
Metadata Support
Automatic lens data collection from electronic Micro Four Thirds lenses. Automatic saving of camera settings and slate data such as project, number of scenes, shots and special notes.
Controls
Touch menus on 5 inch screen. 1 x Operation Button, 1 x Record button, 1 x Stills Button, 1 x Scroll Wheel integrated into the handle, 1 x ISO, Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Play Button, 1 x Focus Button and 1 x IRIS Button
