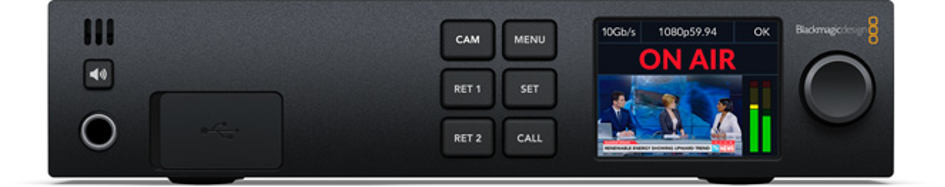

Blackmagic Studio Converter

Blackmagic Studio Converter

With the 10G Ethernet in Blackmagic Studio Converter and Blackmagic Studio Camera 4K Pro, you can connect all camera signals with a single Ethernet IP line connection. Well; camera signal, program return signal, timecode, reference, tally, talkback and control signals are all transmitted through one cable. It has the same advantages as SMPTE fiber, but cheaper than standard 10G copper Ethernet cable. Blackmagic Studio Converter enables distribution of all video, audio and talkback connections on the studio side. It also has a large power supply that powers the camera via an Ethernet cable, so you don't need a power supply near the camera.

Links

SDI Video Inputs: 2

SDI Video Outputs: 2

SDI Monitor Output: 1

SDI Speeds

1.5G, 3G, 6G,12G.

Built-in Speaker

Mono

Analog Audio Inputs

2 channel analog Program audio input supported via 9pin connector.

Analog Audio Outputs

1 x 6.35mm headphone jack.

SDI Audio Input

Return1 with 2ch Program sound embedded in 1.5G/3G/6G/12G-SDI signal.

4 talkback channels; On channels 13, 14, 15 and 16.

Return2 with 2ch audio embedded in 1.5G/3G/6G/12G-SDI signal.

SDI Audio Output

2 channel Programs embedded in 1.5G/3G/6G/12G-SDI signal.

4 talkback channels; On channels 13, 14, 15 and 16.

Timecode Links

1xBNC Input, 1xBNCOutput.

Reference Links

1xBNC Input, 1xBNCOutput.

Tri-Sync or BlackBurst.

Talkback Voice

Channels 13 and 14 SDI for technical team communication.

SDI channels 15 and 16 for production team communication.

RJ-45 Talkback connector for external analog talkback systems.

Screen

2.2 inchLCD

Ethernet

1 x 10Gb/s PoE RJ-45 Camera connector for SMPTE Fiber style workflows over Cat 6A network cable.

1x1Gb/s for remote control and software updates.

Computer Interface

1xUSB-C.
