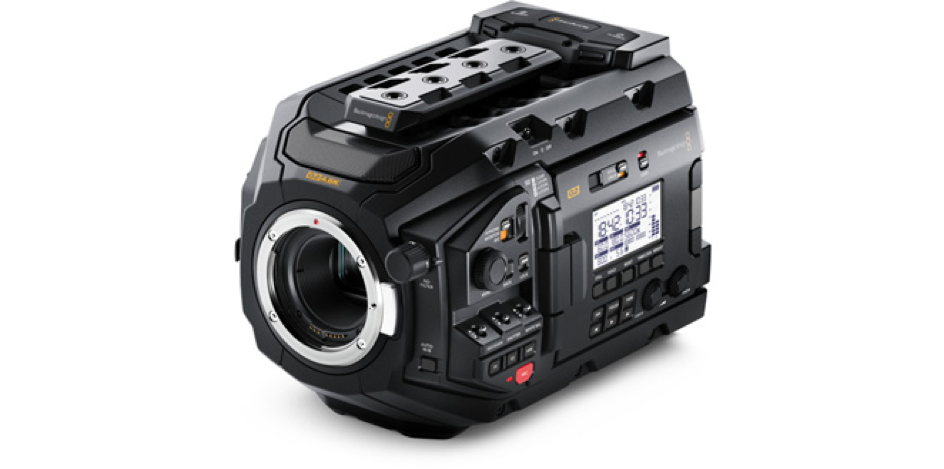

Blackmagic URSA Mini Pro 4.6K G2

URSA Mini Pro 4.6KG2; It is a next-generation digital film camera with updated electronics and a high-performance 4.6K HDR image sensor for shooting up to 300 frames per second. Featuring a Super 35mm 4.6K sensor with 15 stops of dynamic range, built-in optical ND filters, interchangeable EF lens mount for replacement with optional PL, B4 or F-mounts, Blackmagic RAW and ProRes recording to dual CFast or dual SD card, and innovative for direct recording to external disks you get a USB-C expansion port. In addition, the URSA Mini Pro 4.6KG2; It includes a large set of broadcast-style external controls, a backlit status display, flip-out touch-screen monitor and more.

Camera Features

Effective Sensor Size

25.34mm x 14.25mm (Super35).

Lens Mount

EF mount is included. Interchangeable with optional PL, B4 and F mount lens mounts.

Lens Control

Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses.

Dynamic Range

15 Steps.

Shooting Resolutions

4608 x 2592,4608 x 1920(4.6K 2.40:1),4096 x 2304(4K16:9),
4096 x 2160(4KDCI),
3840 x 2160(UltraHD),
3072 x 2560(3KAnamorphic),
2048 x 1152(2K 16:9),
2048 x 1080(2KDCI),
1920x1080

Frame Rates

Maximum sensor frame rate based on selected resolution and codec. Project frame rates; 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60fps are supported.

High Speed Frame Rates

Blackmagic RAW 8:1

4.6K Full - up to 120fps
UHD Windowed - up to 150 fps
UHD Windowed - up to 300 fps

ProRes 422 HQ

4.6K Full - up to 80fps
UHD Windowed - up to 120fps
HD Windowed - up to 240 fps

Built-in ND Filters

Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.

Focus

The Focus button activates the peaking function, can be used with autofocus compatible lenses.

Iris Control

Iris wheel and touchscreen sliders are for manual iris adjustment of electronically controlled lenses; The iris button is for instant auto iris adjustments on compatible lenses so no pixels are clipped in movie mode. In video mode, scene average automatic exposure.

Screen Dimensions

4 inches

Display Type

LCD capacitive touch screen.

Metadata Support

Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic saving of camera settings and slate data such as project, number of scenes, shots and special notes.

Controls

Touchscreen menus on 4-inch display. Push buttons for other controls. 2 assignable hotkeys.

Timecode (timecode) Clock

Timecode clock with high accuracy. Slip less than one square every 8 hours.

Links

Total Video Input

1 x SDI

Total Video Output

1 x SDI, 1 xSDI Monitor.

SDI Speeds

1.5G, 3G, 6G, 12G.

Analog Audio Inputs

2 x XLR analog switchable between microphone, line level and AES audio. Phantom power support.

Analog Audio Outputs

1 x 3.5mm headphone jack supports iPhone microphone for talkback.

Reference Entries

Tri-Sync/Black Burst/Timecode.

Remote control

2 x 2.5mm LANC inputs for Start/Stop Recording, plus Iris and Focus control for use with compatible lenses.

Computer Interface

USBType-C3.1 Gen 1 for recording to external drive and software updates
