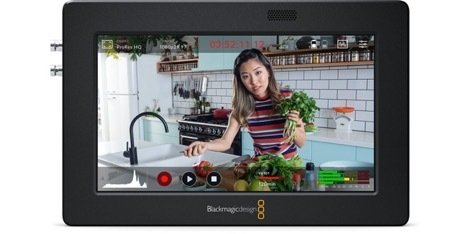

Blackmagic Video Assist 5” 3G
Product description
Blackmagic Video Assist 5" 3G is a portable monitor, professional recorder, portable scope and outstanding camera viewfinder solution! You can also add better quality recording codecs and a larger monitor to any SDI or HDMI camera! New design; 4x It includes innovations such as a built-in scope, improved focus tools, a tally indicator and built-in 3D LUTs. Video Assist 5" 3G supports formats up to 1080p60 and the new design features L-Series batteries for longer runtimes. Blackmagic Video Assist 5" 3G truly includes 4 products in one body!
Highlights
Supports video formats up to 1080p60
5 inch LCD with focus peak, zebra and false color
Connections include 3G‑SDI and HDMI
Includes a single SD Card recorder for ProRes recording
Includes 3D LUTs with WFM, vector, histogram and RGB parade scopes
Technicial Specifications
Links | |
SDI Video Inputs | 1 x Micro BNC |
SDI Video Outputs | 1 x Micro BNC |
SDI Speeds | 270Mb, 1.5G, 3G |
HDMI Video Inputs | one |
HDMI Video Outputs | one |
Analog Audio Inputs | No, just embedded audio. |
Analog Audio Outputs | 1 x 3.5mm headphone jack output. |
Built-in Speaker | Mono |
Screen Dimensions | 5 inches 1920 x 1080. |
Screen brightness | 300 nits |
SDI Audio Inputs | 16 channels of embedded audio over SDI |
SDI Audio Outputs | 16 channels of embedded audio over SDI |
HDMI Audio Inputs | 8 channels of embedded audio over HDMI |
HDMI Audio Outputs | 8 channels of embedded audio over HDMI |
Remote control | no |
SD Interface | 1 x UHS‑I SD slot. |
Storage Type | SDXC UHS‑I and SDHC UHS‑I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. |
Computer Interface | 1 x USB‑C for initial setup, software updates and Video Assist utility software control. |
SDI Video Standards | |
SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 |
SDI Compatibility | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M |
SDI Metadata Support | HD RP188 |
Sound Sampling | Television standard sampling rate of 48 kHz and 24‑bit. |
Video Sampling | 4:2:2 YUV |
Color Precision | 10-bit |
Color Space | REC 601, REC 709 |
Multiple Speed Support | SDI and HDMI; Switchable between 270 Mb/s, 1.5 Gb/s and 3 Gb/s. |
HDMI Video Standards | |
SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
HDMI Color Sensitivity | 10-bit |
Copy Protection | The HDMI input cannot capture images from copy-protected HDMI sources. Always verify copyright ownership before capturing or distributing content. |
Media | |
Environment | 1 x UHS‑I SD for HD recording. |
Media Type | SDXC UHS-I and SDHC UHS-I SD cards. |
Supported Codecs | |
ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF. | |
Control | |
Recorder Control | Integrated, capacitive touchscreen LCD with Blackmagic OS on-screen controls for navigating settings and menus. |
External Control | SDI and HDMI start/stop, recording trigger with timecode. |
Software | |
Included Software | Blackmagic Video Assist Operating System |
Scopes | |
Scopes | Waveform, RGB Parade, Vectorscope, Histogram |
Display Modes | Picture-in-picture or scopes with picture layer and opacity control. |
Operating systems | |
Match | Mac 10.14 Mojave, Mac 10.15 Catalina or higher |
windows | Windows 8.1 and 10. |
Power Requirements | |
Power source | 1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included) |
Environmental Features | |
Working Ambient Temperature | 0° to 40° C (32° to 104° F) |
Storage Environment Temperature | -20° to 45° C (-4° to 113° F) |
Relative humidity | 0% to 90% non-condensing |
Physical Properties | |
Width | 148mm |
Height | 90mm |
Depth | 36.5mm |
Weight | 410 g |
