Datavideo HS-2200 - HD Mobile Studio with 6x5 Matrix

Stock Code

AEFQX463

Ability to work alone and move:

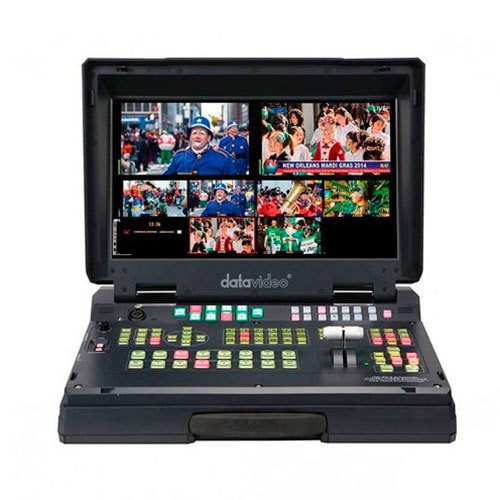

There are also two versions of the SE-2200 mixer. The first is the SE-2200 model with a stand-alone main unit and control panel. The second is the HS-2200, a hand-held version of the SE-2200 with monitor and intercom, in the form of a bag.
With its 17.3” video monitor and 8 channel (4 users) intercom system, HS-2200 is ready for use in the most difficult conditions.

The SE-2200 is also a great solution that works like a 6x6 HD-SDI matrix. Video in Dual Video (PIP) and built-in KJ overlay system works well with entry-level Datavideo KJs or other KJ software.
Up to 6 HD-SDI and 2 HDMI inputs, 6 HD-SDI routable outputs and two HDMI multiviewer outputs (the HS-2200 only has one because the internal display uses one) make it a very effective mixer.

2200 series mixers have built-in overlay splitters. This feature means that one of the HDMI inputs can be used with a laptop or PC with simple Datavideo KJs or other KJ software, even with a power point. You no longer have to use a built-in computer for KJ. In this way, you are one step closer to a workflow that does not need a socket.

Input: 4 analog balanced XLR
Output: 2 analog balanced XLR. Audio from 4-CH XLR Audio inputs is supported as embedded with SDI output.
Two PIPs (video in video) available with user defined frame
Tally for GPI interface and RJ45 firmware upgrade
DC 12V voltage, suitable for mobile use
Its dimensions are 455 x 355 x 134 mm.
The monitor specification is 1600x900 pixels.
Comes with the Intercom 4 earphones, 4 waist packs, 4 20 meter cables.
Both HD and SD cannot be used at the same time. SD can be used but not recommended. The product is an HD product.
The MS-2200 model of the product has not been produced yet.
