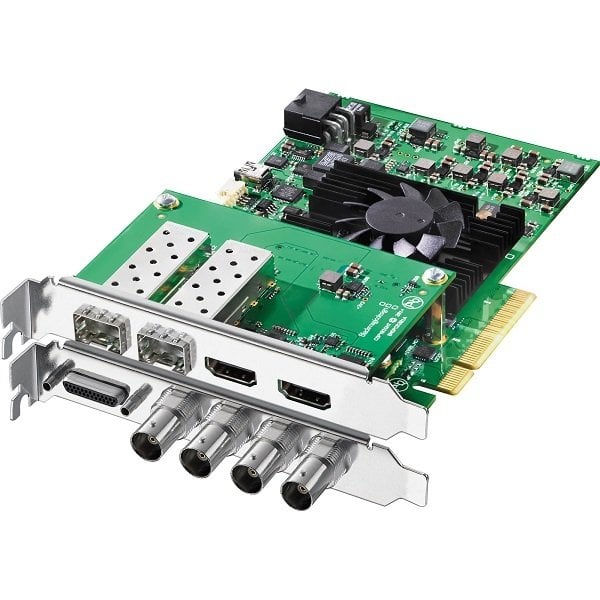

DeckLink 4K Extreme 12G

SDI Video Inputs : 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. Switchable between 2D/3D.

SDI Video Outputs : 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. Switchable between 2D/3D.

Analog Video Inputs : 1 x Component YUV on 3 BNCs switchable to S-Video or Composite Component supports HD and SD.

Analog Video Outputs : 1 x Component YUV on 3 BNCs switchable to S-Video and Composite Component supports HD and SD.

Analog Audio Inputs : 2 channels of professional balanced analog audio via XLR connectors.

Analog Audio Outputs : 2 channels of professional balanced analog audio via XLR connectors.

Fiber Optic Inputs/Outputs (Optional): 2 x 12Gb/s Fiber Optic.

AES/EBU Audio Inputs: 2 channel unbalanced audio with sample rate converter.

AES/EBU Audio Outputs: 2 Channel unbalanced.

SDI Audio Inputs : 16 channels embedded in SD/HD/2K/4K.

SDI Audio Outputs : 16 channels embedded in SD/HD/2K/4K.

HDMI Video Inputs : HDMI type A connector with support for 2160p60.

HDMI Video Outputs : HDMI type A connector with support for 2160p60.

HDMI Audio Inputs : 8 channels embedded in SD/HD/4K.

HDMI Audio Outputs: 8 channels embedded in SD/HD/4K.

Sync Input: Tri-Sync or Black Burst.

Device Control : Sony™ compatible RS422 deck control port. TxRx reversible serial ports under software control.

Computer Interface : 8 lane 2nd generation PCI Express compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card.

Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i9450, 1080i59. , 1080i60

2K Video Standards (SDI Only) : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards : 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p (25p via SDI only)

3D Video Standards SDI : 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 23.98 2K DCI , 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

3D Video Standards HDMI : 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60

SDI Compatibility : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, ITU‑R BT.656 and ITU‑R BT.601.

SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling : Television standard sample rate of 48 kHz at 24-bit.

SDI Video Sampling : 4:2:2, 4:4:4

SDI Color Accuracy: 8, 10, 12-bit RGB 4:4:4 in all modes up to UHD 30p, and 8, 10-bit YUV 4:2:2 in all modes

Color Space : REC 601, REC 709, REC 2020

HDR Support : HDR metadata packing, HLG and PQ transfer characteristics. (HDMI supports static HDR metadata only)

HDR Support: HDR metapackaging, HLG and PQ transfer features. (HDMI only supports static HDR metadata)

HDMI Video Sampling: 4:4:4, 4:2:2 and 4:2:0

HDMI Color Sensitivity: 8, 10 and 12-bit (Deep Color).

HDMI Configuration : HDMI 2.0b supports Deep Color and HDR. It is automatically configured with the screen it is connected to.

Multi-Speed support: HDMI and SDI video connections can switch between SD/HD/2K and 4K. Component analog video connections can switch between SD and HD.
