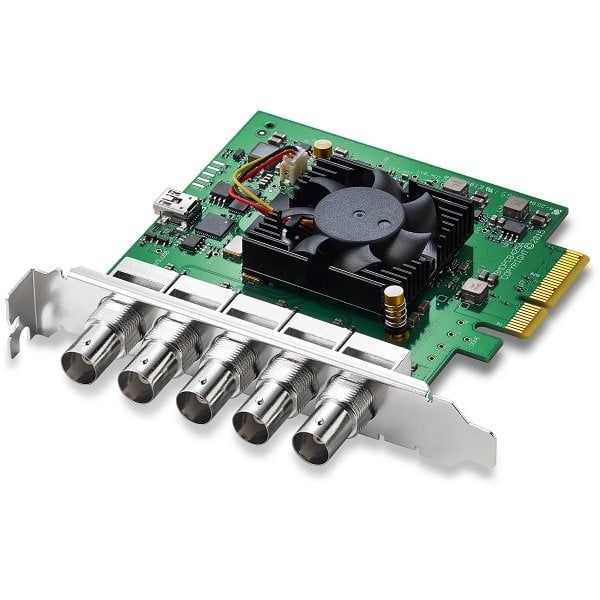

DeckLink Duo 2

Connections: SDI Video Inputs 4 x bidirectional 12-bit SD/HD that can be configured as Input or Output independently.

SDI Video Outputs: 4 x bi-directional 12-bit SD/HD, independently configurable as Input or Output.

SDI Audio Inputs: 16 channels embedded in SD and HD.

SDI Audio Outputs : 16 channels embedded in SD and HD.

Sync Input: Tri-Sync or Black Burst.

Computer Interface : 4 lane PCI Express 2nd generation, compatible with 4, 8 and 16 lane PCI Express slots.

Video Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, .94, 1080i60

SDI Compatibility : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.

SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling: 48 kHz and 24-bit television standard sample rate.

SDI Color Sensitivity: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30, and 8, 10-bit YUV 4:2:2 in all modes.

SDI Video Sampling : 4:2:2, 4:4:4

Color Scheme : REC 601, REC 709
