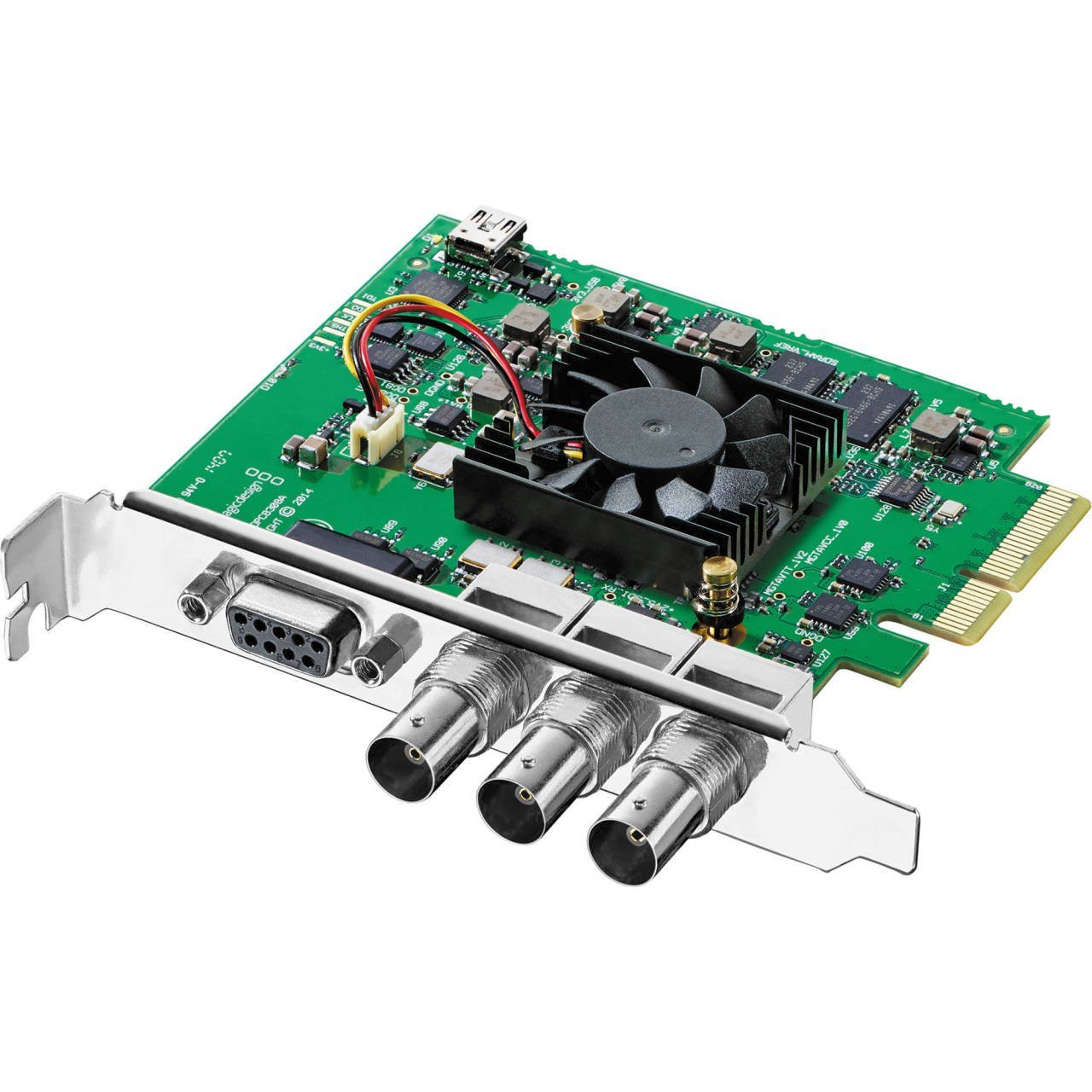

DeckLink SDI 4K
DeckLink SDI 4K
DeckLink SDI 4K is ideal for situations where you only need an SDI solution but also want the highest quality SDI capture and playback. You get incredible quality 6G-SDI with any PCI Express Mac, Windows or Linux based computer. DeckLink SDI 4K is the world's smallest and most affordable multi rate SD/HD and Ultra HD SDI video card that lets you connect to any SD, HD-SDI, 2K and Ultra HD equipment. It also offers RS-422 deck control, built-in keying and reference input, providing a complete solution for editing, paint, design and more.
Links
SDI Video Inputs
1 x 10-bit SD/HD/2K/4K. Supports 6 Gbps 4:2:2 and 3 Gbps 4:4:4.
SDI Video Outputs
1 x 10-bit SD/HD/2K/4K. Supports 6 Gbps 4:2:2 and 3 Gbps 4:4:4.
SDI Audio Inputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Outputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
