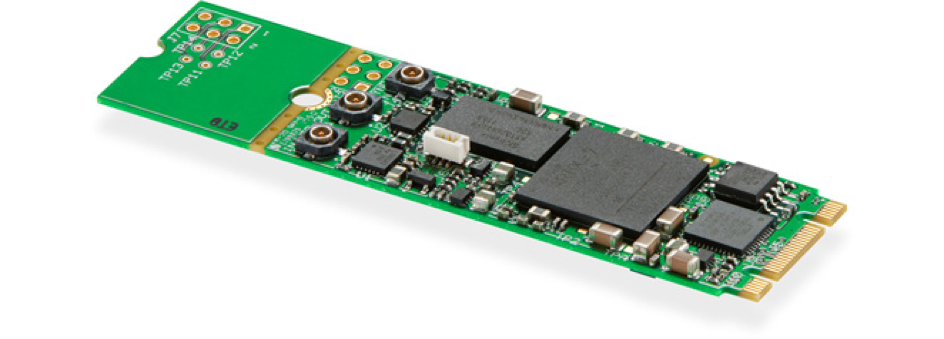

DeckLink SDI Micro

Miniature M.2 card with 3G-SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. The DeckLinkSDI Micro also includes a Black Burst and Tri-Sync reference input, and its miniature size makes it perfect for use with compact PC-based portable solutions.

Links

M.2

M.2 PCI Express 1-lane generation 3 is compatible with B and M key types 2260 and 2280.

standards

SD Video Standards

525i59.94 NTSC, 625i50PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94,1080i60

SDI Video Sampling

4:2:2, 4:4:4

SDI Color Accuracy

8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30, and 8, 10-bit YUV 4:2:2 in all modes.

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.601 and ITU-R BT.656
