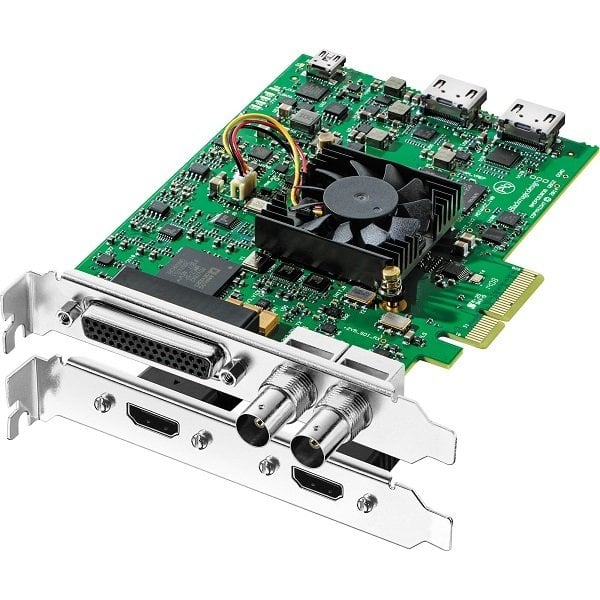

DeckLink Studio 4K

SDI Video Inputs: 1 x 10-bit SD/HD/2K/4K. It supports 6G 4:2:2 and 3G 4:4:4.

SDI Video Outputs: 1 x 10-bit SD/HD/2K/4K. It supports 6G 4:2:2 and 3G 4:4:4.

Analog Video Inputs : Supports 1 x Component YUV, 1 x Composite, 1 x S-Video Component HD and SD on 3 BNCs.

Analog Video Outputs : 1 x Component YUV, 1 x Composite, 1 x S-Video, 1 x SD-SDI on 3 BNCs. Component supports HD and SD.

Analog Audio Inputs : 4 channels of professional balanced analog audio via 1/4 inch jack connectors.

Analog Audio Outputs : 4 channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 and 4 can switch to AES/EBU outputs.

AES/EBU Audio Inputs: 2-channel unbalanced audio with sample rate converter.

AES/EBU Audio Outputs: 2 Channel unbalanced audio. Analog outputs 3 & 4 can be switched to AES/EBU outputs for audio output 3 & 4 and 5 & 6. While using this feature, it offers a total of 6 AES/EBU output audio channels.

SDI Audio Inputs : 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.

SDI Audio Outputs : 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.

HDMI Video Inputs : 1 x HDMI A type connector.

HDMI Video Outputs: 1 x HDMI A type connector.

HDMI Audio Inputs: 8 channels embedded in SD, HD, 4K.

HDMI Audio Outputs: 8 channels embedded in SD, HD, 4K.

Sync Input: Tri-Sync or Black Burst.

Device Control : Sony™ compatible RS-422 deck control ports. TxRx reversible serial ports in software control.

Computer Interface : 4 lane PCI Express 2nd generation, compatible with 4, 8 and 16 lane PCI Express slots.

Video Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60

2K Video Standards (SDI Only) : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards : 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p* * SDI only

SDI Compatibility : SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.

SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.

SDI Video Sampling : 4:2:2, 4:4:4* *4K is 4:2:2.

SDI Color Sensitivity: 8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, and 8, 10-bit YUV 4:2:2 in all modes.

Color Scheme : REC 601, REC 709

SDI Video Sampling : 4:4:4, 4:2:2 & 4:2:0

HDMI Color Sensitivity: 10-bit RGB HD HD and 10-bit YUV in 4K

SDI Configuration : HDMI 1.4b. It offers automatic configuration feature to the screen it is connected to.

Audio Sampling : Television standard sample rate of 48 kHz at 24-bit.

Color Precision: 10‑bit

Color Scheme : REC 601, REC 709

HDMI Resolution : Pixel by pixel up to 4K resolutions.

Multi-Speed Support: HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections can switch between SD and HD.

Copy Protected : The HDMI input cannot capture images from copy protected HDMI sources. Always verify copyright ownership before capturing images or distributing content.
