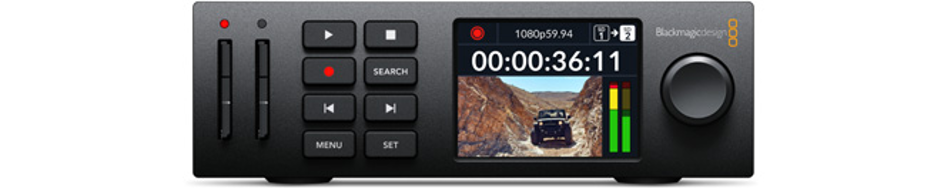

HyperDeck Studio HD Mini

HyperDeck Studio's smallest model is the size of Teranex Mini. Thanks to its modular design, you can use a Teranex Mini Rack Shelf to mount the 3HyperDeck Studio HD Mini in a single rack unit or combine it with other products such as switchers, format converters or streaming processors. Although its size is small; It offers 3G-SDI in and out, HDMI out, dual SD card slots, built-in sync and timecode generator, front panel controls, and both AC and DC power inputs. Because HyperDeck Studio HD Mini is detected as a webcam, you can use any type of video software by connecting USB to a computer.

Links

SDI Video Inputs: 1

SDI Video Outputs: 1

SDI Speeds: 270Mb, 1.5G, 3G.

HDMI Video Outputs: 1

Display: 2.2 inch LCD

Timecode Connections: 1 x BNC In, 1 x BNC Out.

Reference Connections: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.

SDI Audio Inputs: 16 channels of embedded audio.

SDI Audio Outputs: 16 channels of embedded audio.

HDMI Audio Outputs: 8 channels of embedded audio.

Remote Control: 1 x RS-422 Input.

Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.

Ethernet: 1Gbps

Computer Interface: 1 x USB Type-C 3.0 (up to 5Gb/s) for recording to external disk, webcam output, software configuration and updates.
