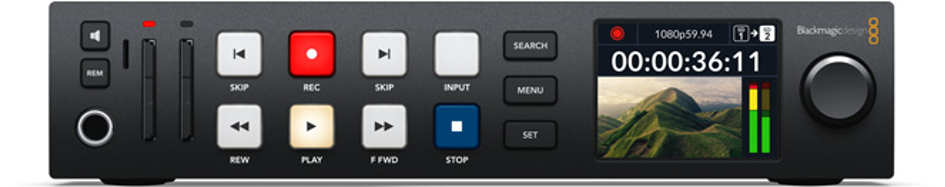

HyperDeck Studio HD Plus
HyperDeck Studio HD Plus
HyperDeck Studio HD Plus includes all the features of the Mini model but is larger, giving it more room for extra control and connections. By adding 6G-SDI, this model records and playbacks ProRes up to UltraHD 30fps. It also includes SDI pass-through output and HDR support. Both 6G-SDI outputs enable playback of fill and key signals up to 1080p60. There's also an HDMI input and dedicated 3G-SDI display output with layer content. Every button pressed on the front panel is sent to a dedicated RS-422 remote control output, and the DC power input is now a broadcast style XLR connection. front panel; It has been enhanced with better streaming control buttons, a headphone jack, and a built-in speaker.
Links
SDI Video Inputs: 1
SDI Video Outputs: 2
SDI Monitor Output: 1
SDI Speeds: 270Mb, 1.5G, 3G, 6G.
HDMI 2.0 Video Input: 1
HDMI 2.0 Video Output: 1
Built-in Speaker: Mono
Audio Output: 1 x 6.35mm headphone jack.
Display: 2.2 inch LCD.
Timecode Connections: 1 x BNC In, 1 x BNC Out.
Reference Connections: 1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
SDI Audio Inputs: 16 channels of embedded audio.
SDI Audio Outputs: 16 channels of embedded audio.
HDMI Audio Inputs: 8 channels of embedded audio.
HDMI Audio Outputs: 8 channels of embedded audio.
Remote Control: 1 x RS-422 Input, 1 x RS-422 Output.
Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet: 1Gb/s
Computer Interface: 1 x USB Type-C 3.0 (up to 5Gb/s) for recording to external disk, webcam output, software configuration and updates.
