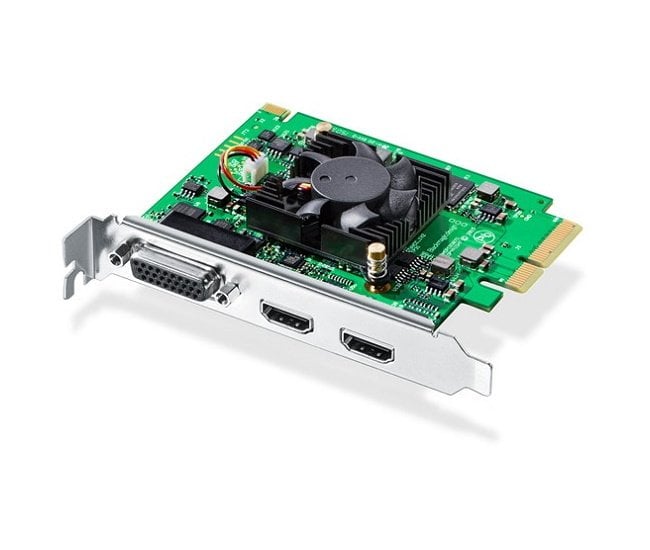

Intensity Pro 4K

HDMI Video Inputs : 1 x HDMI A type connector.

HDMI Video Outputs : 1 x HDMI A type connector.

HDMI Audio Inputs: 8 channels embedded in SD, HD and Ultra HD.

HDMI Audio Outputs: 8 channels embedded in SD, HD and Ultra HD.

Analog Video Inputs : Component, Composite or S‑Video.

Analog Video Outputs : Component, Composite or S‑Video.

Analog Audio Inputs : 2-Channel RCA HiFi audio at 24-bit.

Analog Audio Outputs : 2-Channel RCA HiFi audio at 24-bit.

Multi-Speed Support: HDMI video connections can switch between SD, HD and Ultra HD. Component analog video connections can switch between SD and HD.

Computer Interface: PCI Express 4 lane compatible with 4, 8 and 16 lane PCI Express slots.

Video Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

Audio Sampling : Television standard sample rate of 48kHz and 24-bit.

Color Scheme : REC 601, REC 709.

HDMI Video Sampling : 4:4:4, 4:2:2 & 4:2:0 &

HDMI Color Sensitivity : 8, 10-bit (Deep Color) RGB 4:4:4 in all modes up to 1080p60, 8, 10-bit YUV 4:2:2 in all modes.

HDMI Setup : Supports HDMI 1.4b Deep Color and provides automatic setup to the screen it is connected to.

Copy Protected : The HDMI input cannot capture images from copy protected HDMI sources. Always verify copyright ownership before capturing images or distributing content.
