Kiloview N3

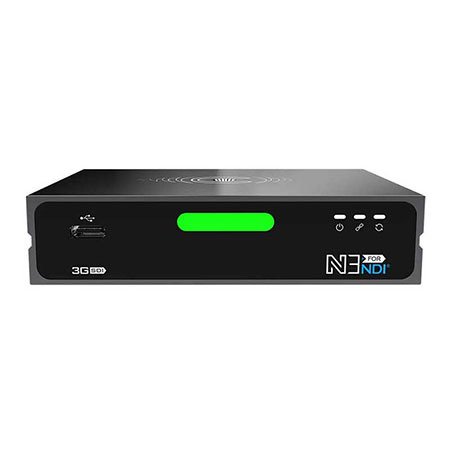

Kiloview N3 HD Video Encoder/Decoder
3G-SDI/NDI Bi-Directional Converter
Product description
With Kiloview N3 you can share video up to 1080p60 over an NDI IP network. This small, portable encode/decode unit is ideal for mounting on a camera with SDI output so you can connect it to an NDI system. N3 is a bi-directional converter that encodes and outputs 3G-SDI video source to Full NDI and outputs to 3G-SDI, or supports decode from Full NDI to 3G-SDI video output.
Besides serial, the converter supports PTZ control (Sony VISCA and Pelco-D/P) over Ethernet (requires optional USB to RS-232/RS-422/RS-485 adapter). You can power the unit without a power adapter using the supplied power adapter or when connected to a network with PoE. The tally connector on the front allows your camera interface to connect with the tally system, and a large onboard LED indicates when this camera is on schedule or in preview. The bottom of the unit has a 1/4"-20 threaded mounting hole that makes it easy to mount the unit on a camera.
Product features
- Share Video With Your NDI IP Workflow
- Convert 3G-SDI to NDI
- Convert NDI to 3G-SDI
- Supports 1080p60, 1080i60 and 720p60
- SDI Embedded and Analog Audio In/Out
- Loop-Through 3G-SDI Output
- Supports PTZ Control and Tally
- Supports External Power and PoE
- Web Based Interface
- Portable Form Factor
Technicial Specifications
Login | |
Video Input Connectors | 1 x BNC (3G-SDI) |
Input Video Format | SDI 1080p at 60fps |
Audio Input Connectors | None |
Embedded Audio Input | SDI RJ45 |
Exit | |
Video Output Connectors | 1 x BNC (3G-SDI) |
Output Video Format | SDI 1080p at 60fps |
Audio Output Connectors | None |
Embedded Audio Output | RJ45 SDI |
standards | |
HDR Compatibility | Not Specified by Manufacturer |
Connection | |
Other I/O | 1 x USB Type-C PTZ |
Expansion slots | None |
IP Stream | |
Video IP Encoding | NDI: 1920 x 1080 at 60p |
Video IP Decoding | NDI: 1920 x 1080 at 60p |
Equipment | |
Tally Light | Yes |
Strength | |
Power Connection | 1 x USB Type-C (5 to 18 VDC) Input |
Power consumption | Device: 6 W |
Environment | |
Operating temperature | -4 to 113°F / -20 to 45°C |
Storage Temperature | -4 to 158°F / -20 to 70°C |
General | |
Dimensions | 3.9 x 3.1 x 0.9" / 100 x 80 x 24mm |
Packaging Information | |
Package Weight | |
Box Dimensions (LxWxH) | 7.7 x 4.6 x 2" |
