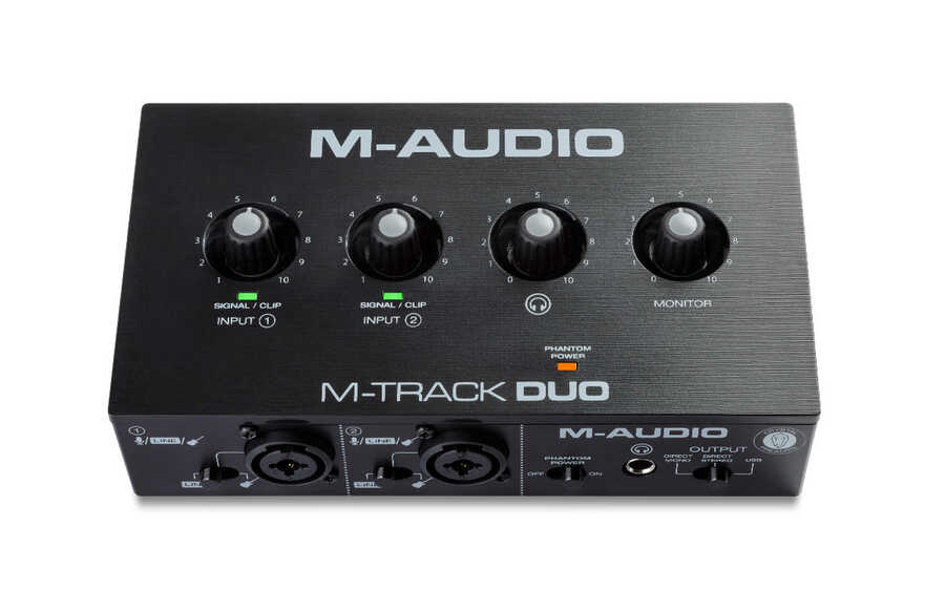

M-AUDIO M-Track Duo Sound Card

M-Track Duo is one of the most successful sound cards in its class. Ideal for making music on any PC, Mac or iOS device, M-Track Duo delivers 24-bit/48kHz sound quality in an easy-to-use compact format. This handy sound card is ideal for recording any sound source.

General features:

- 2-channel USB sound card for PC and Mac

- 2 high quality Combo Crystal Preamp inputs

- Ability to use condenser microphone with +48V support

- Instrument input for guitar and bass

- Stereo line input for digital piano, keyboard, etc.

- 1/8" headphone and 1/4" stereo output

- Possibility to listen to the input signal or the signal from the computer with the USB/Direct button

- Pro Tools | Rich software package including First M-Audio Edition, MPC Beats, AIR Music Tech Xpand!2, Eleven Lite guitar amp plugin and 20 AVID plugin effects

Technicial Specifications:

- Microphone Input (Balanced XLR)

- Frequency response: 20Hz – 20kHz (+0.1dB)

- Sign to Noise ratio: 109dB (A-weighted)

- THD+N: 0.003% (min. gain, 0dBu out, A-weighted)

- Preamp EIN :- 128dBu (max. gain, 40Ω source, A-weighted)

- Gain: 0dB to +54dB

- Line Input (Balanced 1/4")

- Frequency response: 20Hz – 20kHz (+0.1dB)

- Sensitivity: -43dBu

- THD: 0.002% (min. gain, 0dBu out, A-weighted)

- Gain: -10dB to +44dB

Instrument Input (Unbalanced 1/4")

- Frequency response: 20Hz – 20kHz (+0.1dB)

- THD+N: 0.005% (min. gain, 0dBu out, A-weighted)

- Input Impedance: 1MΩ

- Gain: -10dB to +44dB

Main Outputs (1/4" with impedance balance)

- Frequency Response: 20Hz – 20kHz (+0.1dB)

- Sign to Noise ratio: 109dB (A-weighted)

- THD: 0.002% (0dBu out, A-weighted)

- Maximum output level: +4dBu

Headphone Out (1/4" TRS)

Power: 60mW/Ch, 32Ω

- Frequency Response: 20Hz – 20kHz (+0.5dB)

- THD+N: 0.02% (A-weighted)

- Sign to Noise ratio: 100dB (A-weighted)

Other

Dimensions: 16.4 x 11.4 x 5.5cm

Weight: 0.30kg
