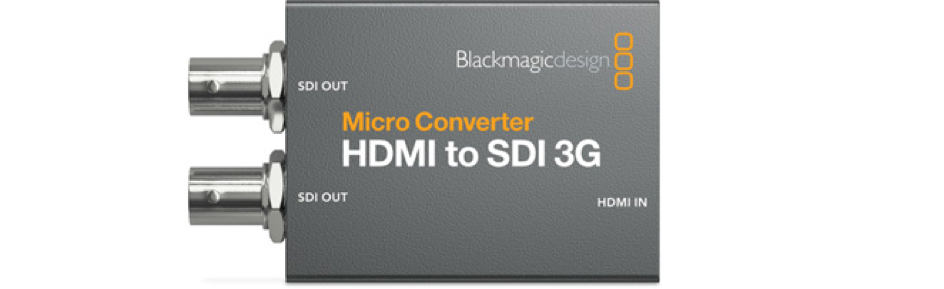

Micro Converter HDMI to SDI 3G

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs that can be set to Level or Blevel formats. Unlike cheap converters, it even supports full-length movie video formats, including 1080p24, 1080p47 and 1080p48.

Links

SDI Video Outputs

2 x SD, HD or 3G-SDI. It automatically pairs with the HDMI input.

HDMI Video Inputs

HDMI Type A input.

Multiple Speed Support

Automatically detect SD or HD.

Updates, Configuration and Power

USB Type-C.

reclocking

Yes

standards

SDI Video Standards

5525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

SDI Compatibility

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE424M, SMPTE 425M

SDI Video Speeds

SDI video connections are switchable between standard definition and high definition and user selectable between level A and B for 3G-SDI via setup utility.

SDI Color Accuracy

4:2:2

SDI Color Scheme

YUV

SDI Auto Switch

Automatically detects SD, HD or 3G-SDI.

HDMI Video Standards

525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Color Sensitivity

4:2:2

HDMI Color Scheme

YUV
