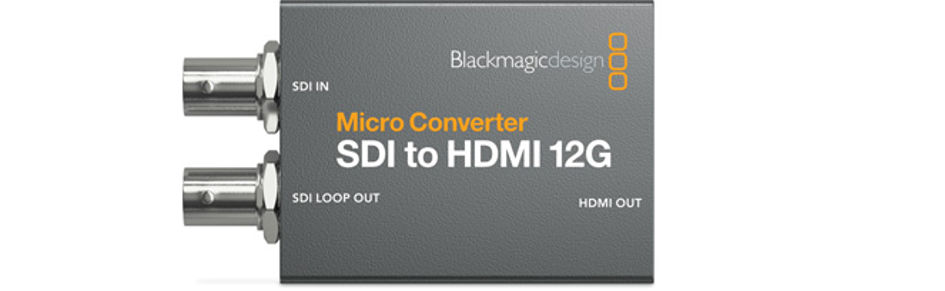

Micro Converter SDI to HDMI 12G wPSU

The world's smallest broadcast quality 12G-SDI to HDMI converter! Blackmagic Micro Converter SDI to HDMI 12G is a compact, broadcast quality video converter specially designed for professional imaging. It includes a 33-point 3D LUT for color calibration on any monitor, projector or television. Micro Converters feature full-size HDMI and professional 12G-SDI connections enabling operation with all speeds of NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p, including 4K DCI at 24/47.95/48. It comes with a universal power supply with an international AC power adapter or can be powered via USB from a TV or cell phone charger.

Links

SDI Video Inputs

one

SDI Video Outputs

1 x pass-through output.

HDMI 2.0 Video Output

1 x type A.

SDI Speeds

270Mb, 1.5G, 3G, 6G, 12G.

Multi-Speed Support

Automatic detection of SD, HD, 2K, Ultra HD and 4K.

Updates, Configurations and Power

USB Type-C.

standards

SD Video Standards

5525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1

SDI Video Speeds

SDI video connections; switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.

SDI Color Space

4:2:2. A 17-point LUT can be loaded via the utility software to calibrate or improve the monitor color.

SDI Auto Detect

YUV

SDI Auto Switching

Automatically detects A or B level HD, 2K DCI, Ultra HD and 4K DCI for SD, 3G-SDI.

HDMI Video Standards

525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.

HDMI Color Accuracy

A 17-point LUT can be loaded via the utility software to calibrate or improve the 4:2:2 monitor color.

HDMI Color Space

YUV
