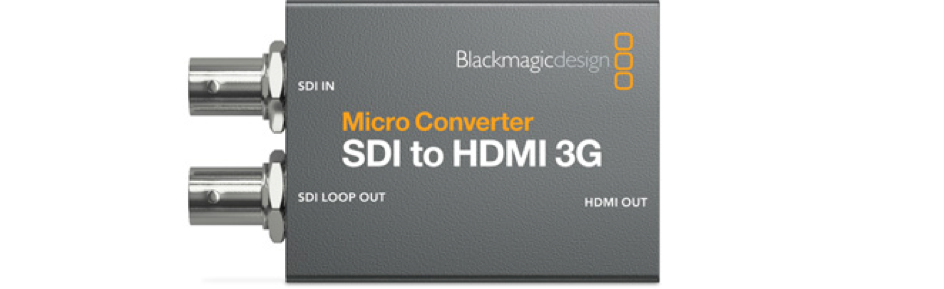

Micro Converter SDI to HDMI 3G wPSU
Micro Converter SDI to HDMI 3G wPSU
This model is specially designed for professional imaging. Includes a 17-point 3D LUT for color calibration of any monitor, projector or television. You can even send this 3D LUT to the SDI pass-through output! It also supports DCI formats and various movie formats including 1080p24, 1080p47 and 1080p48. A power supply supporting 110V to 240V AC current with international plug adapters is included.
Links
SDI Video Inputs
1 x SD, HD or 3G-SDI.
SDI Video Outputs
1 x SDI pass-through output
HDMI Outputs
HDMI Type A output.
Multiple Speed Support
Automatic detection of SD or HD
Updates, Configurations and Power
USB-C.
standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50,
1080p59.94,1080p60
1080PsF25, 1080PsF29.97, 1080PsF30,
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI,
2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI,
2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI Compatibility
SMPTE259M, SMPTE292M, SMPTE296M, SMPTE424M, SMPTE425M
SDI Video Speeds
SDI video connections; Switchable between standard definition, 720p 1080i, 1080p and DCI high definition.
SDI Color Accuracy
4:2:2
SDI Color Space
YUV
SDI Auto Switch
Automatically detects SD, HD and A or B level for 3G-SDI.
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Sensitivity
4:2:2. A 17-point LUT can be loaded via the utility software to calibrate or improve the monitor color.
HDMI Color Space
YUV
