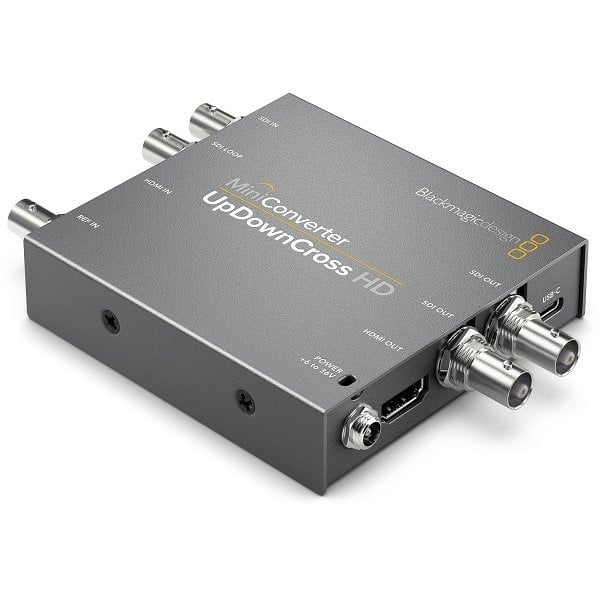

Mini Converter UpDownCross HD

SDI Video Inputs : 1 x SD, HD or 3G‑SDI Video Input and 1 x External Reference Input.

HDMI Video Input : 1 x HDMI type A connector.

SDI Video Outputs: 1 x loop out and 2 x output.

HDMI Video Output : HDMI type A output The output supports the EDID of the monitor.

SDI Speeds: 270Mb, 1.5G, 3G.

Reference Input: Black burst and Tri‑Sync for SD and HD

Multi-Speed Support: Automatically detects HD or standard definition SDI inputs.

Updates and Installation: USB

Reclocking : Yes.

Standards SD Video Standards : 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

HDMI Input Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, ITU‑R BT.656 and ITU‑R BT.601.

SDI Metadata Support: Timecode and closed captioning.

SDI Video Rates: SDI video connections can switch between standard definition and high definition.

SDI Video Sampling : 4:2:2

SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bits.

SDI Color Sensitivity : 4:2:2

SDI Color Scheme : YUV

SDI Auto Switch : Automatically detects SD, HD or 3G‑SDI.

Format Conversion Video Format Conversion: All kinds of SD and HD input "720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Convert it to ".

Computer Scaling : 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Scale DVI resolutions.
