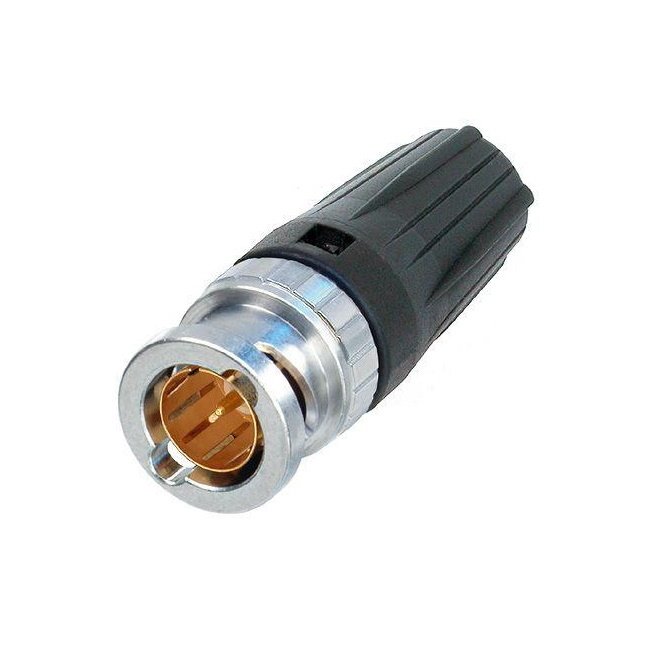

Neutrik NBNC75BLP9 - Bnc Video Connector
Title | NBNC75BLP9 |
| Connection type | BNC 75Ω |
Electric | |
| contact resistance | ≤ 3 mΩ (internal) |
| contact resistance | ≤ 2 mΩ (outer) |
| dielectric strength | 1.5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| rated voltage | <50V |
| VSWE | ≤1.050 /> 32 dB up to 1 GHz ≤1.065 /> 30 dB up to 2 GHz ≤1.100 /> 26 dB to 3 GHz |
Mechanical | |
| cable room | 6.3mm |
| cable retention | > 30 N (Center) |
| fold size | 6.47 Hexagonal fold (trench) acc. IEC 60803 (pattern name E) |
| Crimp size (pin) | 1.6 Square crimp (pin) acc. IEC 60803 (die definition 2) |
| insertion force | <25N |
| Lifetime | > 1000 mating cycles |
| wireless size | |
| Device hangs | Bayonett |
| cable connection | jacket tightening |
Material | |
| Communication | Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) |
| Add | PTFE |
| Shell | Brass (CuZn39Pb3) |
| shell coating | Optalloy® |
Environment | |
| temperature range | -30 °C to +85 °C |
| Communication curlability | Complies with IEC 60803 and IEC 60352-2 |
