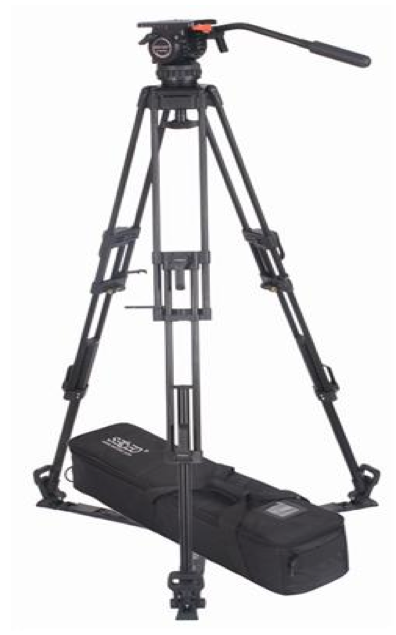

Secced Reach Plus 1 Fluid Head Aluminum Tripod Kit

Head: SC-DV6 / 75RP

Tripod: SC-DV / AL75D

Pan Bar: SC-PB10

Floor Spreader: SC-FS100

It has a max 8kg. Compatible with most Mini-DV and HDV camcorders.

The improved drag system increases the smoothness of head movement, matching the quality of the most famous brand. In addition, the gradual drag adjustment provides a quick change of tilt and pan drag.

The cascade stabilization system helps the operator balance the camera repeatedly within a minute without change to seek the right amount of counterbalance.

The quick release mechanism allows the operator to quickly attach or detach the camera from the head.

All main parts are made with high quality CNC machine. It improves machining accuracy, provides high reliability and significantly improves fluid head performance.

In order to increase the rigidity of the plastic parts, high quality rigid plastic is adopted to manufacture all the plastic parts of the fluid heads, especially the control elements (brake level, clamp level, etc.), resulting in significantly higher durability of SECCED fluid heads.

The 75mm ball head is compatible with most 75mm tripods on the market.

Tripod: SC-DV / AL75D

The Speed Lock system allows for quick setup of tripods and operators can have it up and running in a minute.

Equipped with floor and floor spreader

All plastic parts use imported material, improve the quality of spare parts and ensure high rigidity of tripods.

FEATURES

Reach Plus 1 Kit:

Weight: 6.4 kg

Maximum Payload: 6.9 kg

Height Range: 55-162mm

Chamber Diameter: 75 mm

Carrying Length: 86cm

Head:

Weight: 2.5 kg

Counterbalance: 0-7 steps

Sliding gap plate: 110mm

Tilt drag degrees: 0-3

Pan drag degrees: 0-3

Tilt range: -75° / +90°

Tripod fitting: 75mm

Load

COG (mm) Min Payload (kg) Maximum Payload (kg)

50 0.00 6.90

75 0.00 5.60

100 0.00 4.71

125 0.00 4.13

Tripod:

Weight (With Spreader): 3.7kg

Max. Number of spaces Load capacity: 20kg

Height Range (With Spreader): 40-147cm

Height Range (With Ground Spreader): 49-142cm

Bowl Size: 75mm

Carrying Length: 71cm

Extension: Double

Material: Aluminum
