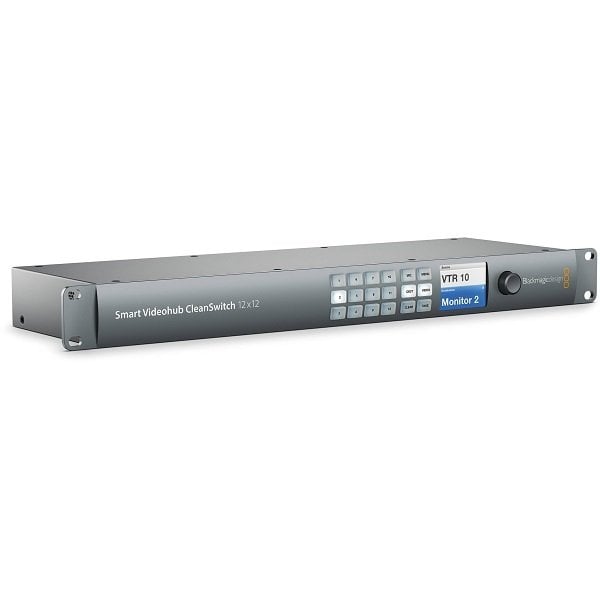

Smart Videohub CleanSwitch 12x12

Connections SDI Video Inputs : 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

SDI Video Outputs: 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

SDI Speeds: 270Mb, 1.5G, 3G, 6G.

Video Input Resynchronizer: On all 12 inputs for clean switch.

SDI Reclocking : On all SDI outputs.

Reference Input: Tri-Sync or Black Burst.

Control Panel Connection : Ethernet.

Serial Control Connection : RJ-6 RS-422.

Multi-Speed Support: Automatically detects SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.

Updates USB Front Panel Router Control : 12 buttons for local control of Videohub. Scroll wheel and 6 buttons for control of the LCD screen or RJ45 Ethernet.

Router Configuration : Via front panel LCD or RJ45 Ethernet.

RS-422 Router Control : 1 x input for router crossmatch control.

Standards SD Video Standards : 525i59.94 NTSC, 625i50 PAL.

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i9450, 1080i59. , 1080i60

2K Video Standards : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601.

SDI Video Sampling: 4:2:2 and 4:4:4

SDI Audio Sampling : Television standard sample rate of 48kHz and 24 bits.

SDI Color Accuracy: 10-bit 4:2:2 and 4:4:4

SDI Color Scheme: YUV or RGB.

SDI Auto Switch : Automatically selects between SD-SDI, HD-SDI and 6G-SDI on each input.

SDI Metadata Support : Video payload identification auxiliary data according to SMPTE 352M.
