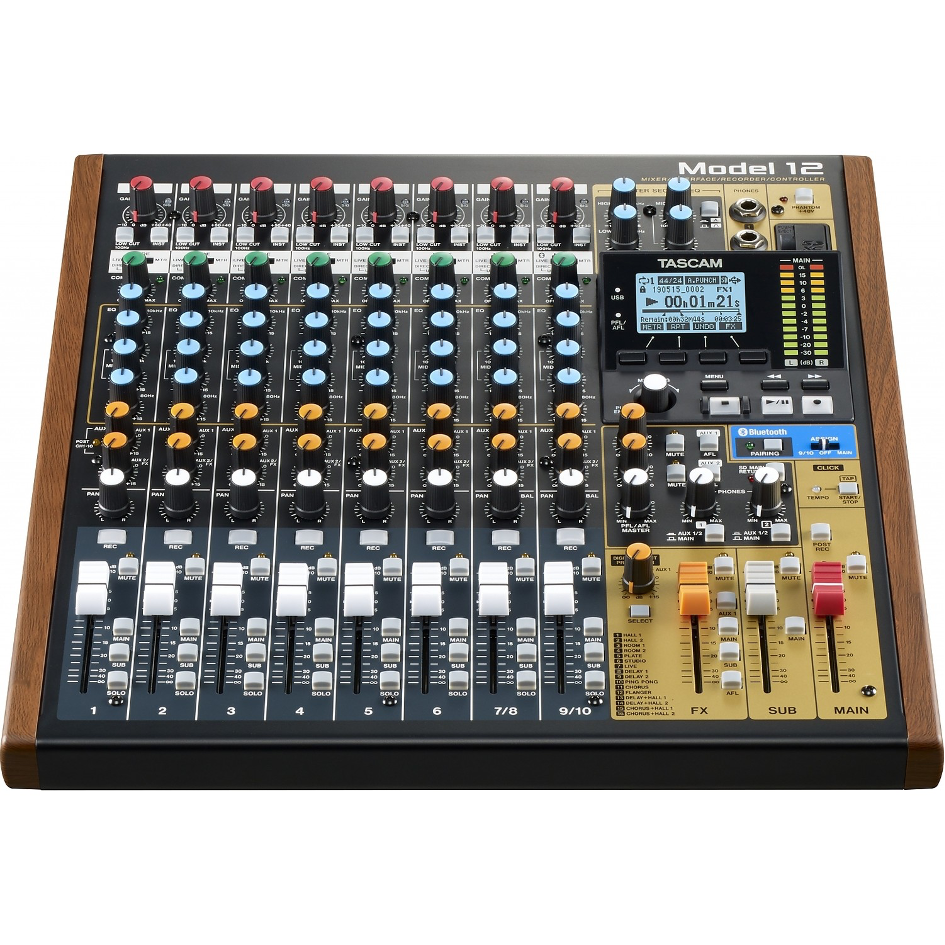

Tascam Model 12-Analog-Digital Mixer
Tascam Model 12-Analog-Digital Mixer
- 10-channel mixer with built-in 12-channel recorder and USB audio interface
Mixer features
- Ten analog inputs on six mono and two stereo channels
- Eight mono microphone inputs (48 V) on XLR connectors with switchable phantom power
- Ultra HDDA mic preamps on inputs 1–6
- Eight channels can be used with high impedance instruments such as electric guitar / bass
- Ten balanced line inputs (six mono, two stereo)
- Multi-purpose stereo channel (CH 9/10) for input from mobile devices via Bluetooth or TRRS smartphone connector
- Adds to input channels 1 and 2
- Mixed minus function on smartphone mini jack input
- Two Aux outputs (monitor, effects) and two stereo outputs (Main, Sub) with independent master faders
- Tracking can be selected between PFL (pre fader), AFL (post fader) and SIP (in situ solo)
- Custom click output with tap tempo feature
- One-knob compressor for all input channels
- Tri-band equalizer with sweepable middles for all input channels
- Switchable low-cut filter (100 Hz) on each channel
- Semi-parametric EQ with sweepable midband for aux or main outputs
- Built-in Bluetooth receiver for wireless playback
- Built-in effects processor
- 16 types of effects
- Can be used on all input channels, aux buses, sub and main stereo buses
- Can be turned on and off by an optional footswitch (Tascam RC-1F)
- Compact 60mm fader
- 12 segment LED output level meters
- XLR balanced outputs for main stereo bus
- Tascam multi-track recording engine uses SD cards as storage media (up to 512GB)
- Up to 12 tracks (10 input channels + stereo mix) can be recorded without the need for a computer
- Recording / playback format: Linear PCM (WAV format, 44.1 / 48 kHz, 16/24 Bit)
- Extreme dubbing, punch in/out recording
- Multi-track playback for enhanced live performance
- Illuminated Play / Record / Stop buttons for better readability in poorly lit environments
- Audio interface features
- USB audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
- Export to PC: 12 channels (all 10 inputs + stereo mix)
- Transfer from PC: 10 channels can be assigned to each channel input
- Audio resolution 44.1 / 48 kHz, 16/24 bit
- USB MIDI interface function
- Simple DAW control support with HUI / MCU protocol emulation
Other features
- MIDI in and out
- Support for MIDI timecode (MTC) and MIDI clock output with song position marker (SPP)
- Simple and fast menu operation with multiple jog dials
