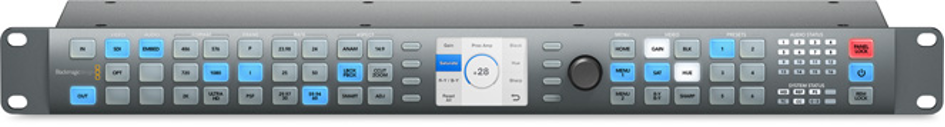

Teranex Express
Teranex Express
Teranex Express is the world's first real-time SD, HD and Ultra HD broadcast standards converter. Incorporating advanced proprietary algorithms, Teranex Express delivers visually transparent, high-quality conversions overseen by the largest broadcasters and studios worldwide. You get amazing 1089 SD, HD and Ultra HD up, down and standards conversions in full 10-bit quality. Plus great processing, noise reduction, automatic rhythm detection, extraction and correction, adjustable scaling and aspect ratio conversion, even with edited content, all with full timecode and high-quality video splitting with multi-channel audio conversion.
Links
SDI Video Inputs
1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD A and B levels, 6G and 12G Ultra HD auto switch.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD and 6G Ultra HD auto-switch. Can be used as dual link input for 4:2:2 3G or 6G UHD.
SDI Video Input Loops
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto-switch.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3Gb/s HD, 6G Ultra HD auto-switch.
SDI Video Outputs
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD A and B levels, 6G and 12G Ultra HD auto switch.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD A and B levels and 6G Ultra HD auto switch. 4:2:2 can be used as dual link output for 3G or 6G Ultra HD.
Quad SDI Video Outputs
SMPTE 435-1 - Quad view HD (frame split method) only. Uses SDI A Out for quadrant A, SDI B Out for quadrant B; Reconfigures SDI A Loop Input for quadrant C, SDI B Loop Input for quadrant D.
Optical Fiber Video Inputs
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switch.
Optical Fiber Video Outputs
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switch. Not available when operating in Dual Link or Quad Link output modes.
SDI Audio Inputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
SDI Audio Outputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Connection (optional)
1x SMPTE optical fiber SFP socket.
Optical Fiber Audio Inputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Audio Outputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Built-in Dolby® Support
Dolby® AC-3 pass through on all conversions. Dolby® E pass through is available, excluding video frame rate conversions.
Time Code Entries
Support for VITC/ATC. No support for LTC.
Timecode Outputs
Support for VITC/ATC. No support for LTC.
Multiple Speed Support
SDI connections; It can switch between standard definition, high definition and Ultra HD. SDI; Switches between 270Mbps standard definition SDI, 1.5Gbps HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference Entry
1x BNC - Black Burst or Tri-level sync.
Computer Interface
1x USB 2.0 mini B port for software updates. 1x RJ45 10/100 Ethernet for remote control and configuration.
Processor Interface
LCD with illuminated pushbuttons, status LEDs and easy-to-use on-screen menus.
standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
1.5G-SDI HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
3G-SDI HD Video Standards
1080p50, 1080p59.94, 1080p60 A and B levels
2K Video Standards
2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Metadata Support
VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support from 608 and 708, SMPTE 334M, and 608 and 708, SMPTE 334M.
Sound Sampling
Television standard sample rate of 48 kHz and 24-bit.
Video Sampling
4:2:2 SDI
Color Precision
10-bit
Color Scheme
REC 601, REC 709
SDI Video Standards
Auto switch 525 NTSC, 625 PAL, 720HD, 1080HD, 2K 2048 x 1080 and Ultra HD 3840 x 2160.
