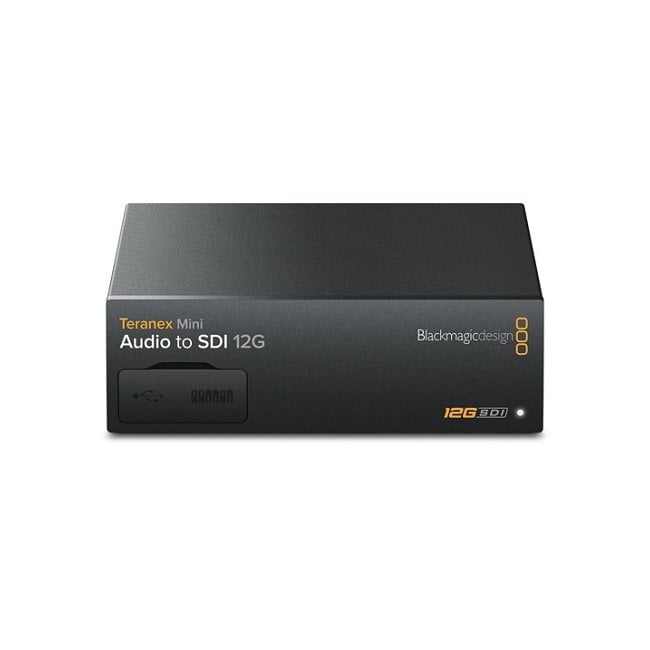

Teranex Mini Audio to SDI 12G

SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switch.

SDI Video Outputs: 1 x 12G-SDI output.

Analog Audio Inputs : 2-channel professional balanced analog audio via XLR connectors or 2-channel unbalanced analog line level via RCA connectors. Timecode input right XLR adjustable.

Digital Audio Inputs : 4 channels of professional 110Ω balanced digital audio via XLR connections. Timecode input right XLR adjustable.

Embedded Audio Support : 16 channels.

Optical Audio Input : S/PDIF Signal with TOSLINK Connector.

Multi-Speed Support: Automatic switch between SD/HD/2K and 4K.

Updates and Installation: USB or Ethernet.

Reset clock : Yes

Standards SD Video Standards : 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF30 1080i50, 1080i59.94, 1080i60

2K Video Standards: 1080p23.98, 1080p24, 1080p25 1080PsF23.98, 1080PsF24, 1080PsF25

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compatibility : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level B, SMPTE 297M for Optical Fiber SDI, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10

SDI Video Rates: SDI video connections are switchable between standard definition SDI, 1.5G SDI, 3G SDI, 6G SDI and 12G SDI.

SDI Video Sampling : 4:2:2, 4:4:4

SDI Audio Sampling : 48 kHz and 24-bit television standard sample rate.

SDI Color Scheme : REC 601, REC 709

SDI Auto Switch: Automatically selects between SD, HD, 3G, 6G and 12G-SDI.

SDI Color Accuracy : YUV 4:2:2 and RGB 4:4:4 for HD, 2K and 4K.

SDI Color Scheme : REC 601, REC 709
