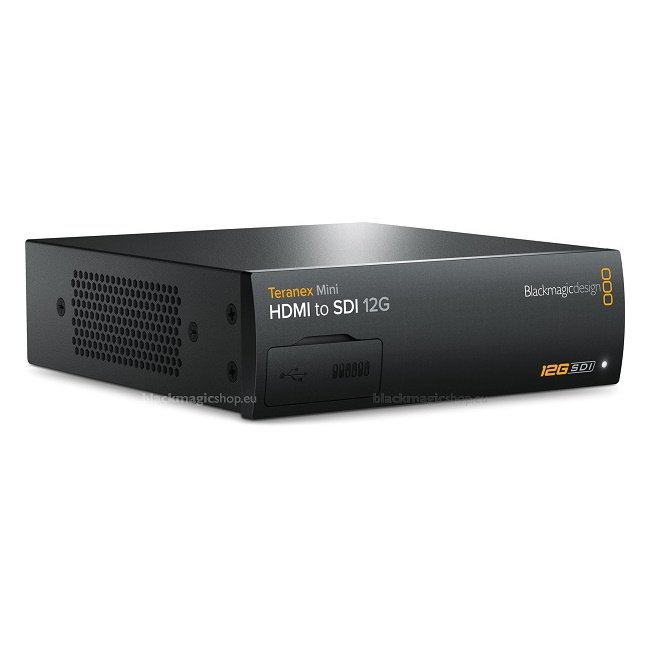

Teranex Mini HDMI to SDI 12G

SDI Video Outputs : 2 x 12G-SDI outputs automatically map to SD, HD and 12G-SDI HDMI video inputs.

HDMI Video Inputs : 1 x HDMI 2.0 A type

Analog Audio Inputs : 2 channels of professional balanced analog audio for XLR connections. Right XLR can be set for timecode input.

Digital Audio Inputs : 4 channels of professional 110Ω balanced digital audio via XLR connections. Right XLR can be set for timecode input.

Embedded Audio Support : 16 channels.

Multi-Speed Support: Automatic switch between SD/HD/2K and 4K.

Updates and Installation: USB or Ethernet.

Reset clock: Yes.

SDI Output Standards : SD Video Standards 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance : SMPTE259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU- R BT.601

SDI Video Rates: SDI video connections are switchable between standard definition SDI, high definition 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling : 4:2:2

SDI Audio Sampling : 48 kHz and 24-bit television standard sample rate.

SDI Color Sensitivity : 4:2:2

SDI Color Scheme : YUV

HDMI Input Standards : SD Video Standards 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

HDMI Color Scheme : REC 601, REC 709

HDMI Color Sensitivity: YUV 4:2:2 and RGB 4:4:4 for HD, 2K and 4K.

Copy Protected : The HDMI input cannot capture images from copy protected HDMI sources. Always verify copyright ownership before capturing images or distributing content.
