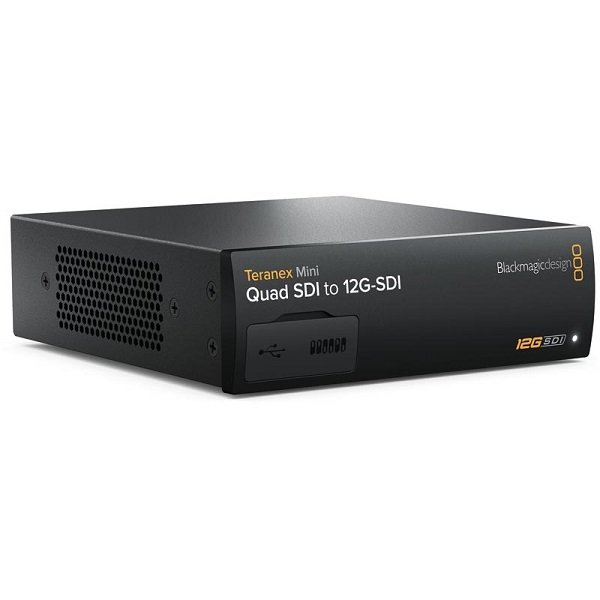

Teranex Mini - Quad SDI to 12G-SDI

SDI Video Inputs: 4 x 12G-SDI SD/HD/2K/4K auto switch

SDI Video Outputs : 2 x 12G‑SDI.

Embedded Audio Support : 16 channels.

Multi-Speed Support: Automatic switch between SD/HD/2K and 4K

Updates and Installation: USB or Ethernet

Reset clock: Yes.

Standards SD Video Standards : 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF29.97, 1080PsF25 1080i50, 1080i59.94, 1080i60

2K Video Standards : 2K DCI 23.98, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compatibility : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-1, SMPTE 2082‑10

SDI Video Rates: SDI video connections can switch between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling: 4:2:2 and 4:4:4

SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit.

SDI Color Scheme: YUV and RGB
