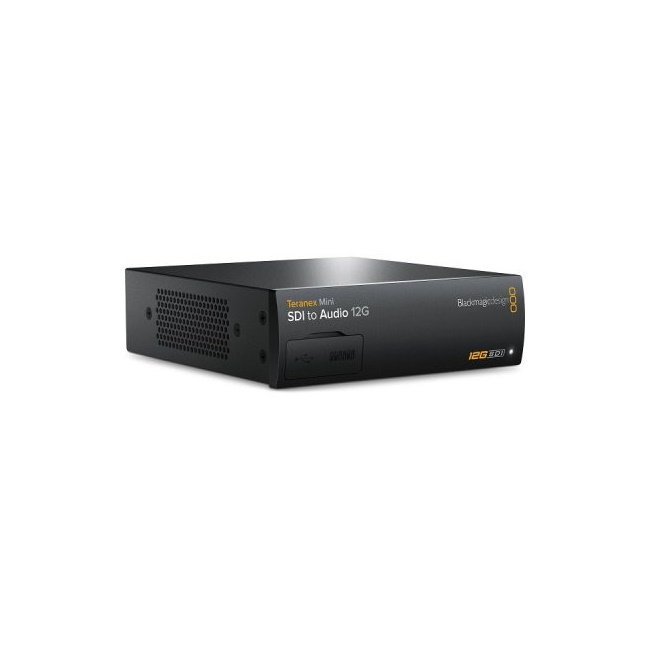

Teranex Mini SDI to Audio 12G

SDI Video Input : 1 x 12G-SDI SD/HD/2K/4K auto switch.

SDI Video Output: 1 x 12G-SDI loop output.

Embedded Audio Support : 16 channels.

Analog Audio Output : 2-channel professional balanced analog audio via XLR connectors or 2-channel unbalanced analog line level via RCA connectors. Adjustable for XLR right for timecode output.

AES/EBU Audio Output : 4 channels of professional 110Ω balanced digital audio via XLR connections. Adjustable for XLR right for timecode output.

Optical Audio Output : S/PDIF Signal with TOSLINK Connector

Multi-Speed Support: Automatic switch between SD/HD/2K and 4K.

Updates and Installation: USB or Ethernet.

Reset Clock: Yes.

Standards SD Format Support: 525i59.94 NTSC, 625i50 PAL

HD Format Support: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i4950, 1080i59. , 1080i60

2K Format Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Format Support: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compatibility: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-A, SMPTE 424M SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT. 656 and ITU-R BT.601

SDI Video Rates : SDI video connections are switchable between standard definition SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.

SDI Video Sampling: 4:2:2 and 4:4:4.

SDI Audio Sampling : Television standard sample rate of 48kHz and 24-bit.

SDI Color Accuracy : YUV 4:2:2 and RGB 4:4:4 for HD, 2K and 4K.

SDI Color Scheme : REC 601, REC 709
