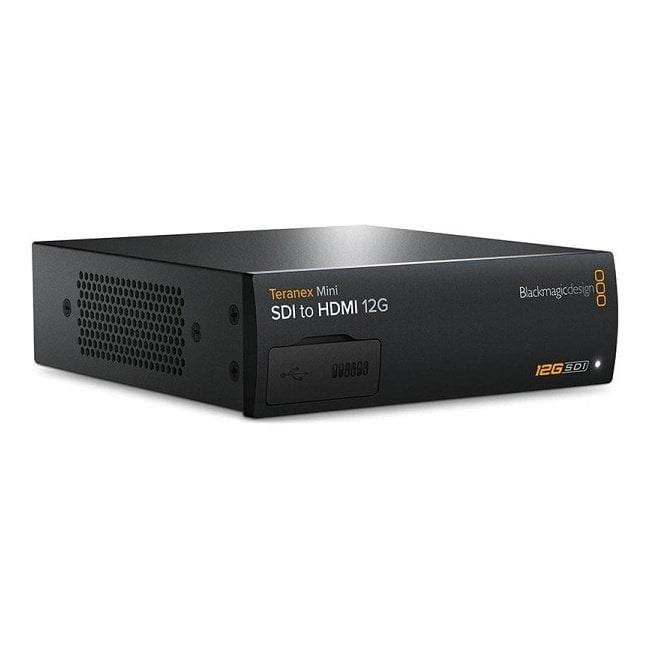

Teranex Mini SDI to HDMI 12G

SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switch.

SDI Video Outputs: 1 x 12G-SDI loop output.

HDMI Video Outputs : 1 x HDMI 2.0 type A connector with support for 2160p60.

Analog Audio Outputs : 2 channels of professional balanced analog audio for XLR connections. The right XLR can be set for timecode output.

Digital Audio Outputs : 4 channels of professional 110Ω balanced digital audio via XLR connections. The right XLR can be set for timecode output.

Embedded Audio Support: 8 channels.

Multi-Speed Support: 270MB, 1.5G, 3G, 6G and 12G.

Updates and Installation: USB or Ethernet.

Reset clock : Yes

SDI Input Standards SD Video Standards : 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i9450, 1080i59. , 1080i60

2K Video Standards : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compatibility : SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082‑10

SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.

SDI Video Sampling: 4:2:2 and 4:4:4

SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit.

SDI Color Sensitivity: 4:2:2 and 4:4:4

SDI Color Scheme: YUV and RGB. 33 point LUTs can be loaded with Teranex Utility.

HDMI Output Standards SD Video Standards: 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards : 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p

HDMI Color Scheme : REC 601, REC 709

HDMI Color Sensitivity: YUV 4:2:2 and RGB 4:4:4 for HD, 2K and 4K.
