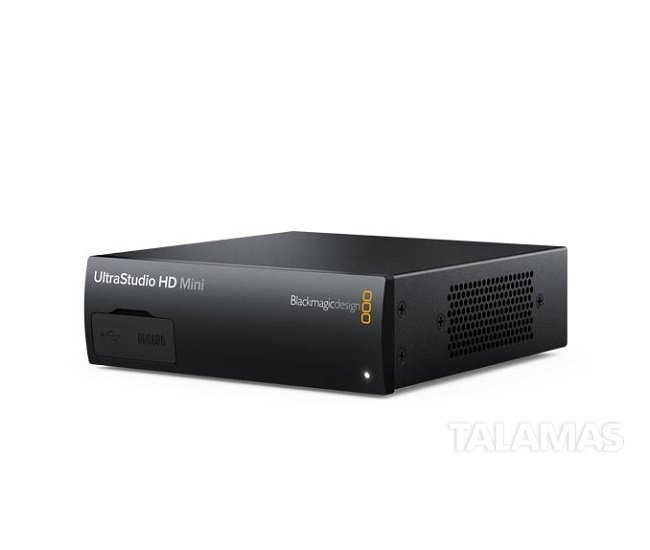

UltraStudio HD Mini

SDI Video Inputs: 1 x 3Gb/s SD/HD pass-through.

SDI Video Outputs: Supports 2 x 3Gb/s SD/HD pass-through, fill and key.

SDI Speeds: 270Mb, 1.5G, 3G

Optical SDI: None.

HDMI Video Inputs: None.

HDMI Video Outputs: 1 x HDMI 1.4b A type connector.

Analog Video Inputs: Y, BY, RY/NTSC/PAL.

Analog Video Outputs: None.

Analog Audio Inputs : 2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.

Analog Audio Outputs: None, embedded audio only.

SDI Audio Inputs: 16 Channels embedded in SD and HD.

SDI Audio Outputs: 16 Channels embedded in SD and HD.

HDMI Audio Outputs: 2 channels embedded in SD and HD.

Timecode Link: None. RP-188 only.

Reference Input: Tri-Sync or Black Burst.

Video Standards SD Video Standards : 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i9450, 1080i59. , 1080i60

2K Video Standards : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards: None.

4K Video Standards: None.

SDI Compatibility: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B.

SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling: 48kHz and 24-bit television speed.

SDI Video Sampling : 4:2:2/4:4:4

Color Scheme : REC 601, REC 709.

HDMI Resolution : Pixel by pixel HD resolution input from the device it is connected to.

Multi-Speed support: SDI and HDMI video connections can switch between standard definition and high definition. SDI switches between 270Mbps, 1.5Gbps and 3Gbps.
