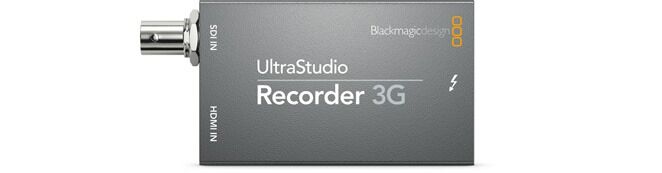

UltraStudio Mini Recorder 3G

SDI Video Inputs : 1 x 10 bit SD/HD switchable.

SDI Audio Inputs: 8 Channels embedded in SD and HD

HDMI Video Inputs : 1 x HDMI A type connector.

HDMI Audio Inputs: 8 Channels embedded in SD and HD

Computer Interface : Thunderbolt™

Video Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60

SDI Compatibility: SMPTE 259M and 292M

SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling: 48kHz and 24-bit television speed.

SDI Color Accuracy: 8-bit & 10-bit YUV 4:2:2

SDI Video Sampling : 4:2:2

Color Scheme : REC 601, REC 709

HDMI Video Sampling : 4:4:4, 4:2:2 & 4:2:0

HDMI Resolution : Pixel by pixel HD resolution input from the device it is connected to.

HDMI Color Sensitivity: 10 bit

Multi-Speed support: SDI and HDMI can switch between standard definition and high definition.

Copy Protected : The HDMI input cannot capture images from copy protected HDMI sources. Always verify copyright ownership before capturing images or distributing content.
