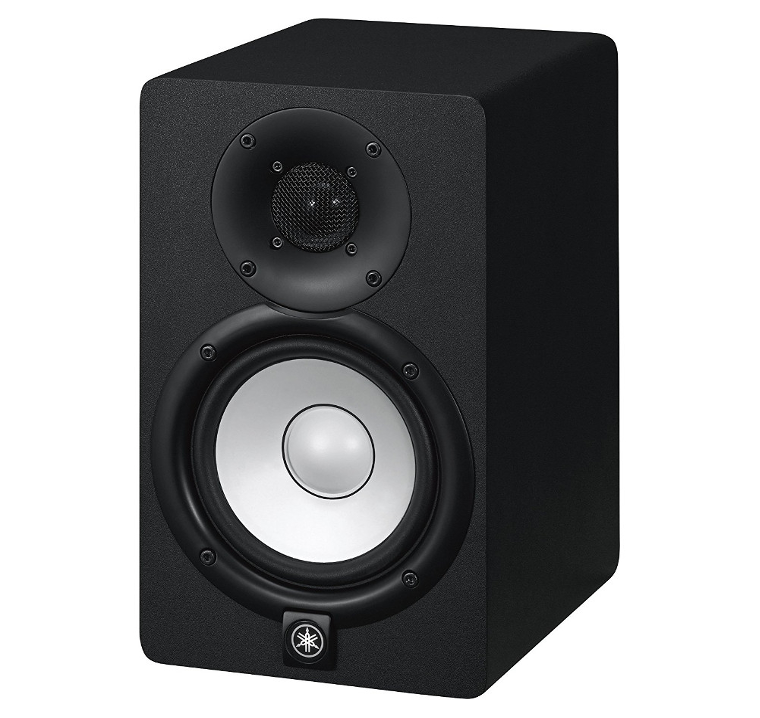

Yamaha HS5 Referans Monitörü(Tek)

HS5 Reference Monitor

Yamaha's Black HS5 Powered Studio Monitor is a Double Upgrade Monitor Designed for Accurate Sound Reproduction. It Has A Total Output Capability Of Up To 70W And Includes A 5'' Woofer And A 1'' Tweeter With Wave Guide That Can Produce Frequencies Up To 30kHz. The HS5 Has Both XLR and 1/4" TRS Inputs for Integration into a Variety of Studio Setups. The Speaker Port Design Can Greatly Affect the Clarity of the Overall Sound. Often, A Vortex At Both Ends Of The Port Can Cause Undesirable Noise By Causing Air Vibrations Inside The Port .

Yamaha's Engineers Can Control and Attenuate Vortex Using Noise Reduction Technology That Includes An Analysis Of The Visual Representation Of Sound. Thanks to This Analysis Yamaha Reaches A Design That Reduces Noise By Up To 6dB

Highlights

70W Total Output

5" Cone Woofer

1" Dome Tweeter

Technicial Specifications

System type: 2-Way Bi-Amped Electric Studio Monitor

Frequency response: 54 Hz - 30 kHz

Crossover Frequency: 2 kHz

HF: 1" (25 mm) Dome

Output power Total: 70W

LF: 45W

HF: 25W

Input Sensitivity: -10 dBu / 10 kΩ

Controls: Level Control (+4 dB / Center Click)

EQ: High Trim Switch (+/- 2 dB @ HF)

Room Control Button (0, -2, -4 dB under 500 Hz)

Indicators: 1x Power On, White LED

Power consumption: 45 W

Dimensions: 170 x 285 x 222 mm

Weight: 5.3 kg
