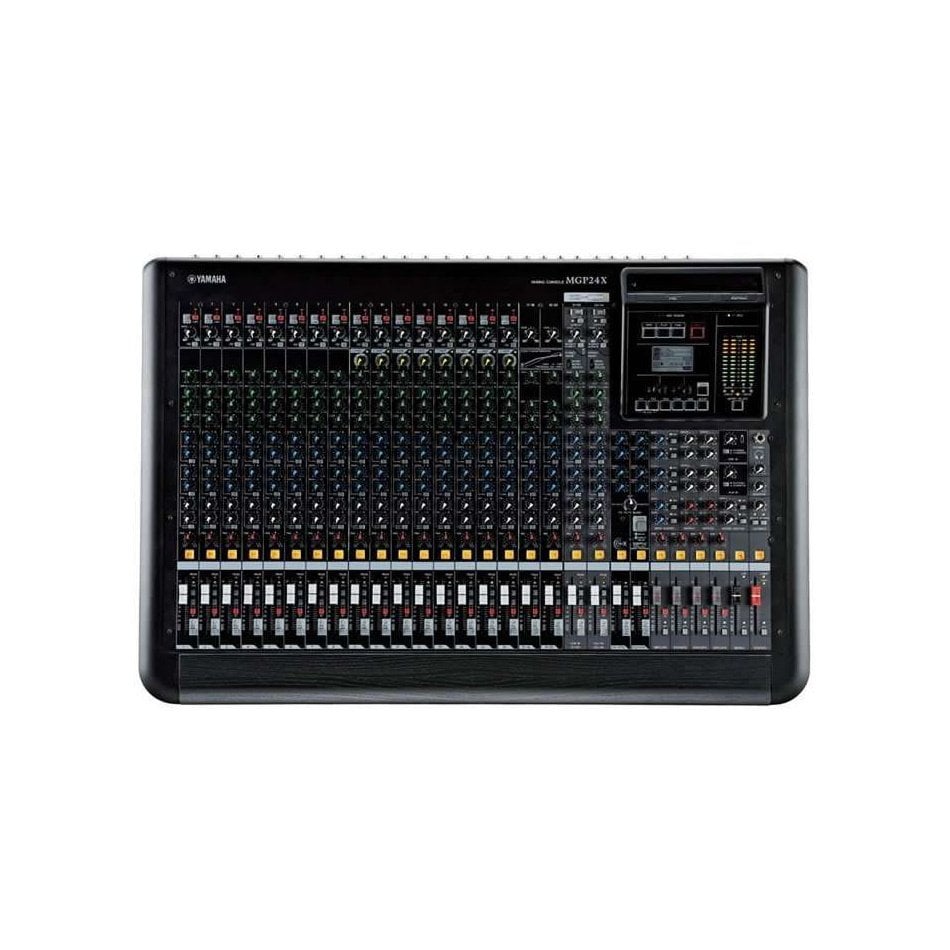

Yamaha MGP24X - 24 Channel Analog Mixer

Technicial Specifications :

Mix Channels: 24 Inputs (16 Mono - 4 Stereo)

Group: 4 GROUP Buses + ST Bus

Aux: 6 Aux Outputs + 2 FX

Input Channels Functions: Compressor CH1-4,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-4.9-12)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH5-8)/ Low 125Hz shelving

Built-in Effects: FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)

Microphone Inputs: Mic:16(INPUTS HPF: 100Hz 12dB/oct)

Phantom Power: 48V Phantom per channel

Inputs: LINE: 4mono+4stereo, CH INSERT IN: 4, RETURN: 1stereo, 2TR IN: 1 stereo

Frequency Response: +0.5/-1.0dB 20Hz to 20kHz, refer to the nominal output level @1kHz

Power Requirement: 100-240V 50Hz/60Hz

Power Consumption: 86W max

Physical Properties:

Width: 819mm

Height: 169mm

Depth: 565mm

Weight: 15.5 kg.
