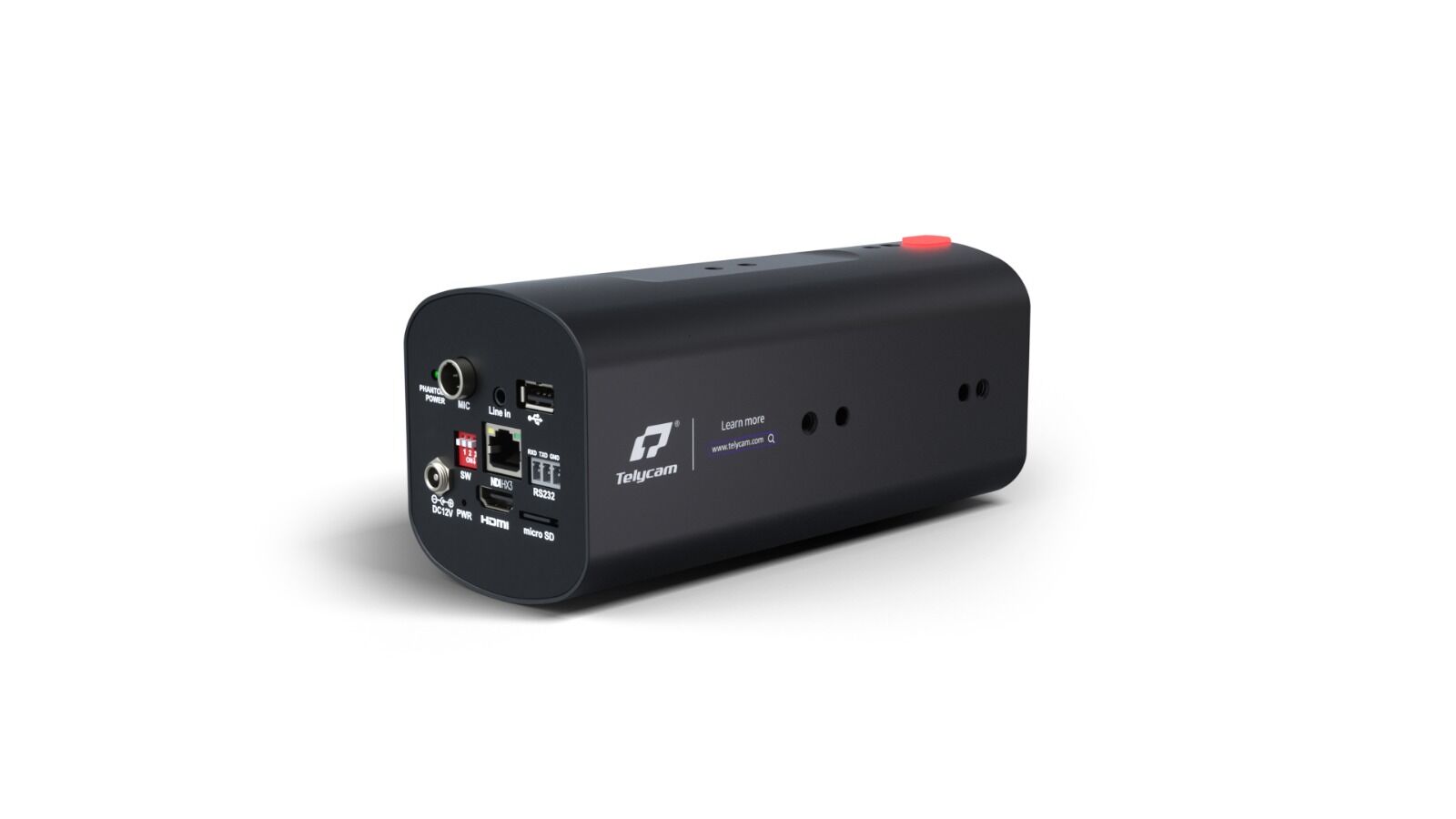

Telycam Vision+ 4KZ

Camera

• 1/1.8-inch, 9MP UHD CMOS sensor

• 20X optical zoom

Image Parameters

• White Balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature

• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority

• Anti-Flicker: OFF, 50Hz, 60Hz

• Image Flip/Mirroring: Support

• Focus/Iris/Electronic-shutter: Auto/Manual

Video Format

HDMI2.0：
3840*2160P60/59.94/50/30/29.97/25
1920*1080P60/59.94/50/30/29.97/25
/24/23.98 ; 1920*1080I60/59.94/50 ; 1280*720P60/59.94/50/30/29.97/25

NDI®|HX3：
Main Stream:
3840*2160P15~30; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60
Sub Stream (CROP):
1920*1080P15~60; 1280*720P15~60; 1024*576P15~60;640*360P15~60;

USB 2.0：
NV12：1920*1080P5; 1280*720P10; 1024*576P15; 800*448P30/25
YUYV：1920*1080P5; 1280*720P10; 1024*576P15; 800*448P20/15
MJPG：1080P60/50/30/25; 1280*720P60/50/30/25; 1024*576P60/50/30/25; 800*448P60/50/30/25

IP Streaming

• Protocol: NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, NTP, RTP Multicast, WebRTC

I/O Interface

• Control Port: RS232, RJ45

• Video Port: NDI®HX3, HDMI2.0, USB Type-A

• Audio Port: Stereo 3.5mm linear inputs, mini XLR

• Tally: Support

• POE: Support

General

• Input Voltage: DC12V, POE+(IEEE802.3bt)

• Operating Temperature: -10℃~50℃

• Operating Humidity: ≤80%

• Dimension(L×W×H): 82mm×85.3mm×186.5mm

• Net Weight: 0.95kg(2.09LBS)

• Color: Black
